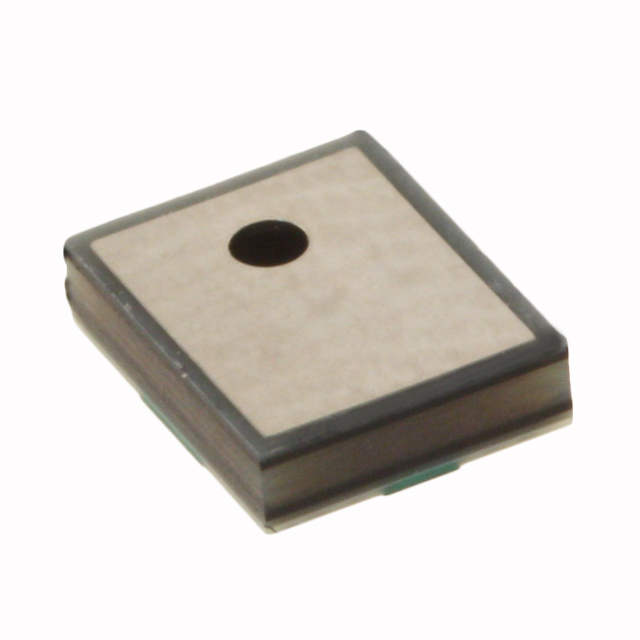

SPM0408HE5H-SB
ObsoleteKnowles Syfer
MIC MEMS ANALOG OMNI -22DB
SPM0408HE5H-SB
ObsoleteKnowles Syfer
MIC MEMS ANALOG OMNI -22DB
Description
General part information
SPM0408HE5H-SB
100 Hz ~ 10 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 3.6 V Omnidirectional (-22dB ±3dB @ 94dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM0408HE5H-SB |
|---|---|
| Current - Supply | 350 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.053 in |
| Impedance | 300 Ohms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 59 dB |
| Sensitivity (Nominal) | -22 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Rectangular |
| Size / Dimension Length | 0.186 in |
| Size / Dimension Width | 0.148 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage Range (Max) | 3.6 V |
| Voltage Range (Min) | 1.5 V |
