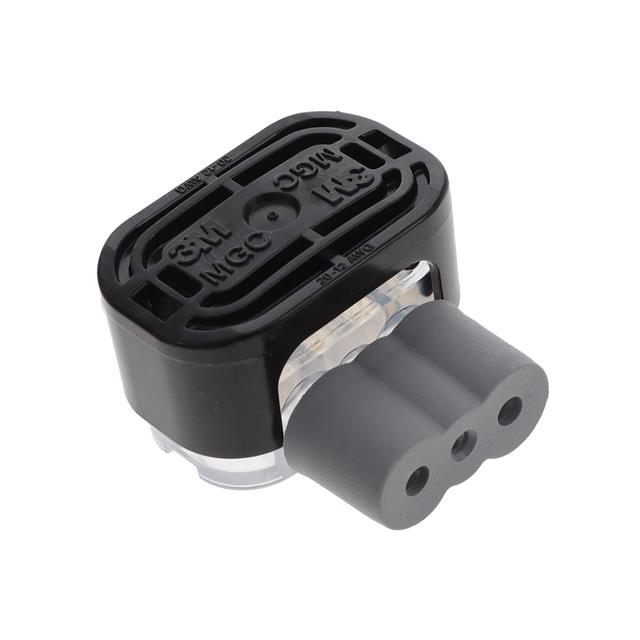

MGC-JUG
Active3M
CONN INLINE TAP 12-20 AWG IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGC-JUG
Active3M
CONN INLINE TAP 12-20 AWG IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MGC-JUG | MGC Series |
|---|---|---|
| Features | Gel Filled | Gel Filled |
| Insulation | Fully Insulated | Fully Insulated |
| Number of Wire Entries | 3 | 3 |
| Terminal Type | Tap, Inline | Tap, Inline |
| Termination | IDC | IDC |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
MGC Series
CONN INLINE TAP 12-20 AWG IDC
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.28 | |
| 10 | $ 2.98 | |||
| 25 | $ 2.82 | |||
| 50 | $ 2.75 | |||
| 100 | $ 2.62 | |||
| 400 | $ 2.29 | |||
| 800 | $ 2.03 | |||
| 1200 | $ 1.90 | |||
| 2800 | $ 1.77 | |||
Description
General part information
MGC Series
Terminal Inline, Tap Connector IDC 12-20 AWG
