Description
General part information
20860-001E-01

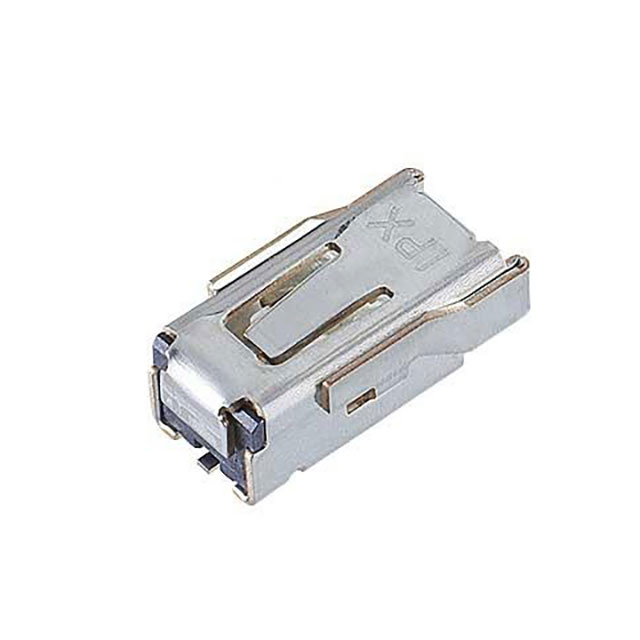

I-PEX MHF-TI Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 20860-001E-01 |
|---|---|
| Center Contact Material | Corson Alloy |
| Center Contact Plating | Tin |
| Connector Style | I-PEX MHF-TI |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | Black |
| Impedance | 50 Ohm |
| Mating Cycles | 30 cycles |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
