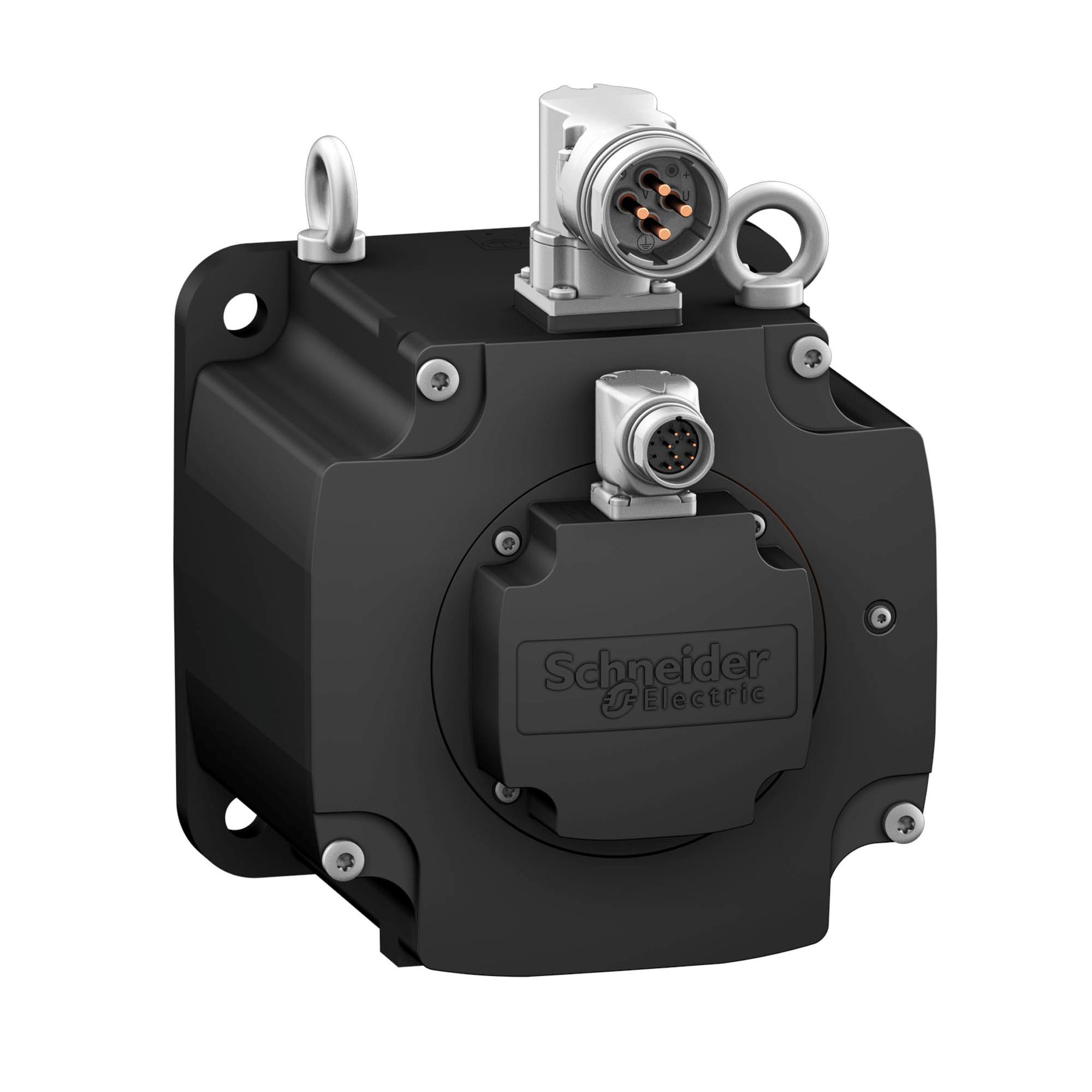

BMH1902P32F2A
ActiveSCHNEIDER ELECTRIC
MOTOR 190MM IP65 KEY ENC MULTI12
BMH1902P32F2A
ActiveSCHNEIDER ELECTRIC
MOTOR 190MM IP65 KEY ENC MULTI12
Description
General part information
BMH1902P32F2A
AC Motor Servomotor 4000 RPM 6.07kW 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BMH1902P32F2A |
|---|---|
| Diameter - Shaft | 1.5 in |
| Features | Brake, Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 3.15 in |
| Mounting Hole Spacing | 7.087 in |
| Power - Rated | 6.07 kW |
| RPM | 4000 RPM |
| Size / Dimension Length | 7.48 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 7.48 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 29000 mNm |
| Torque - Rated (oz-in) | 4106.7 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
