XSAV12373EX
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 10MM, PNP-NO, M30 X 1, 12V TO 48V, XS SERIES
XSAV12373EX
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 10MM, PNP-NO, M30 X 1, 12V TO 48V, XS SERIES
Description
General part information
XSAV12373EX

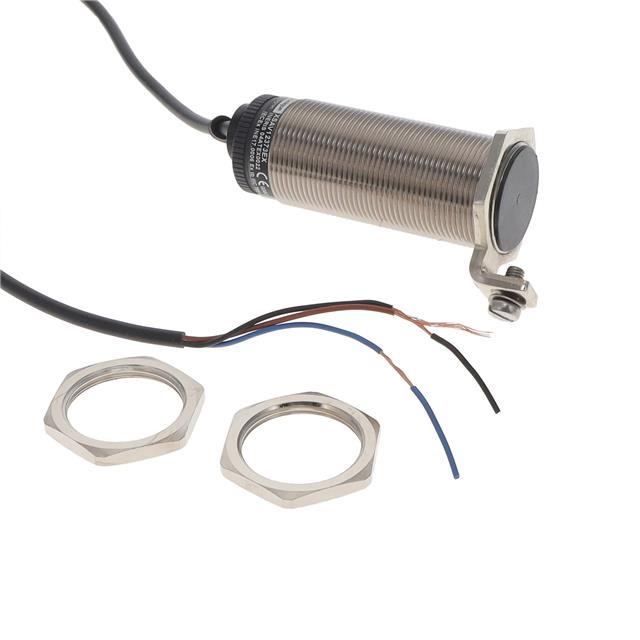

Inductive Proximity Sensor 0.394" (10mm) IP67 Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XSAV12373EX |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | NC, 3-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
