XU2M18MA230W
ActiveSCHNEIDER ELECTRIC
PHOTOELEC SENSOR 240V 200MA ROHS COMPLIANT: YES
XU2M18MA230W
ActiveSCHNEIDER ELECTRIC
PHOTOELEC SENSOR 240V 200MA ROHS COMPLIANT: YES
Description
General part information
XU2M18MA230W

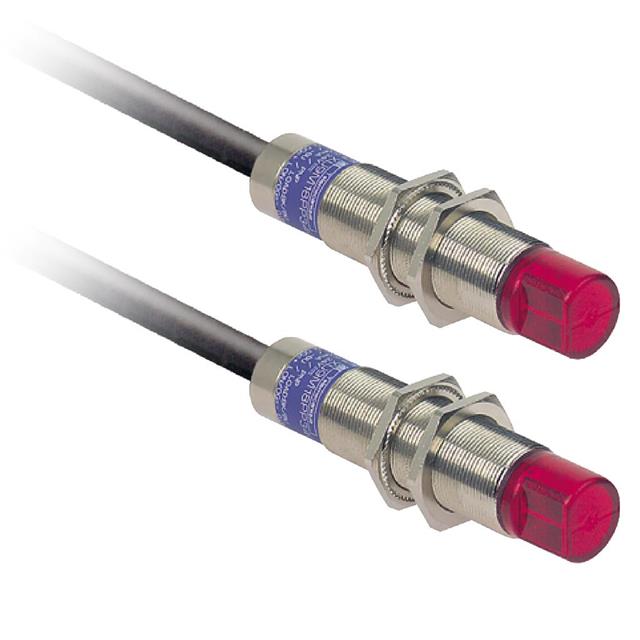

Through-Beam Optical Sensor 590.551" (15m) SCR, NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XU2M18MA230W |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red LED, Yellow LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NO, SCR |
| Response Time | 20 ms |
| Sensing Distance | 590.551 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
