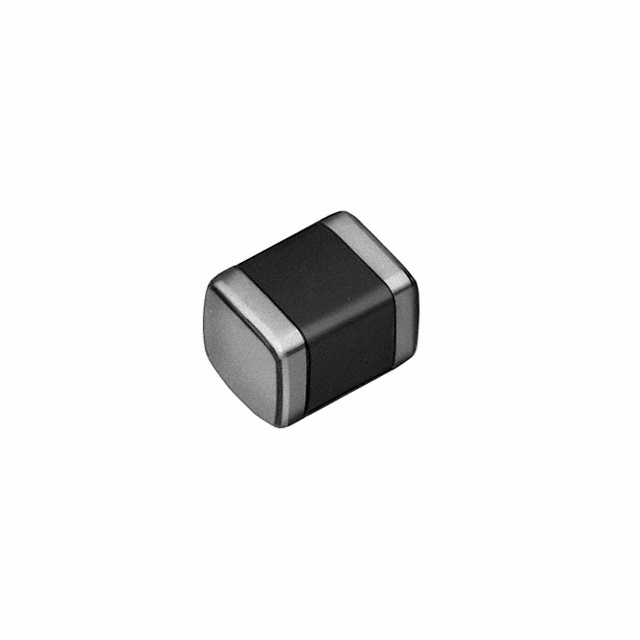

FBMH2016HM251NTV
ActiveTaiyo Yuden
FERRITE BEAD 250 OHM 0806 1LN
FBMH2016HM251NTV
ActiveTaiyo Yuden
FERRITE BEAD 250 OHM 0806 1LN
Description
General part information
FBMH2016HM251NTV
250 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0806 (2016 Metric) 2A 50mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | FBMH2016HM251NTV |
|---|---|
| Current Rating (Max) | 2 A |
| DC Resistance (DCR) (Max) | 50 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.071 in |
| Impedance | 250 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
