Description
General part information

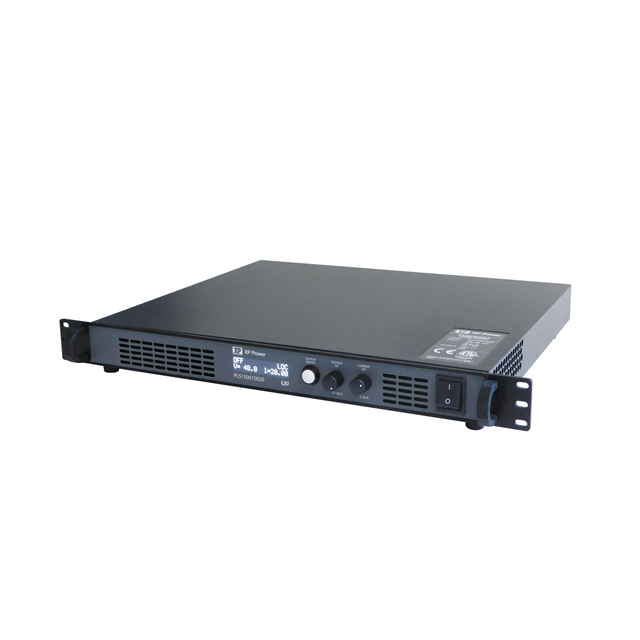

PLS15005040
Enclosed AC DC Converters 1 Output 50V 90 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PLS15005040 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 40 A |
| Efficiency | 85 % |
| Features | Remote Sense, Universal Input, Remote On/Off, PFC, Adjustable Output |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 2 kW |
| Size / Dimension Height | 1.73 in |
| Size / Dimension Length | 18.9 in |
| Size / Dimension Width | 15.79 in |
| Standard Number | 62368-1, 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 50 V |
