3-2005275-3
ActiveTE Connectivity AMP Connectors

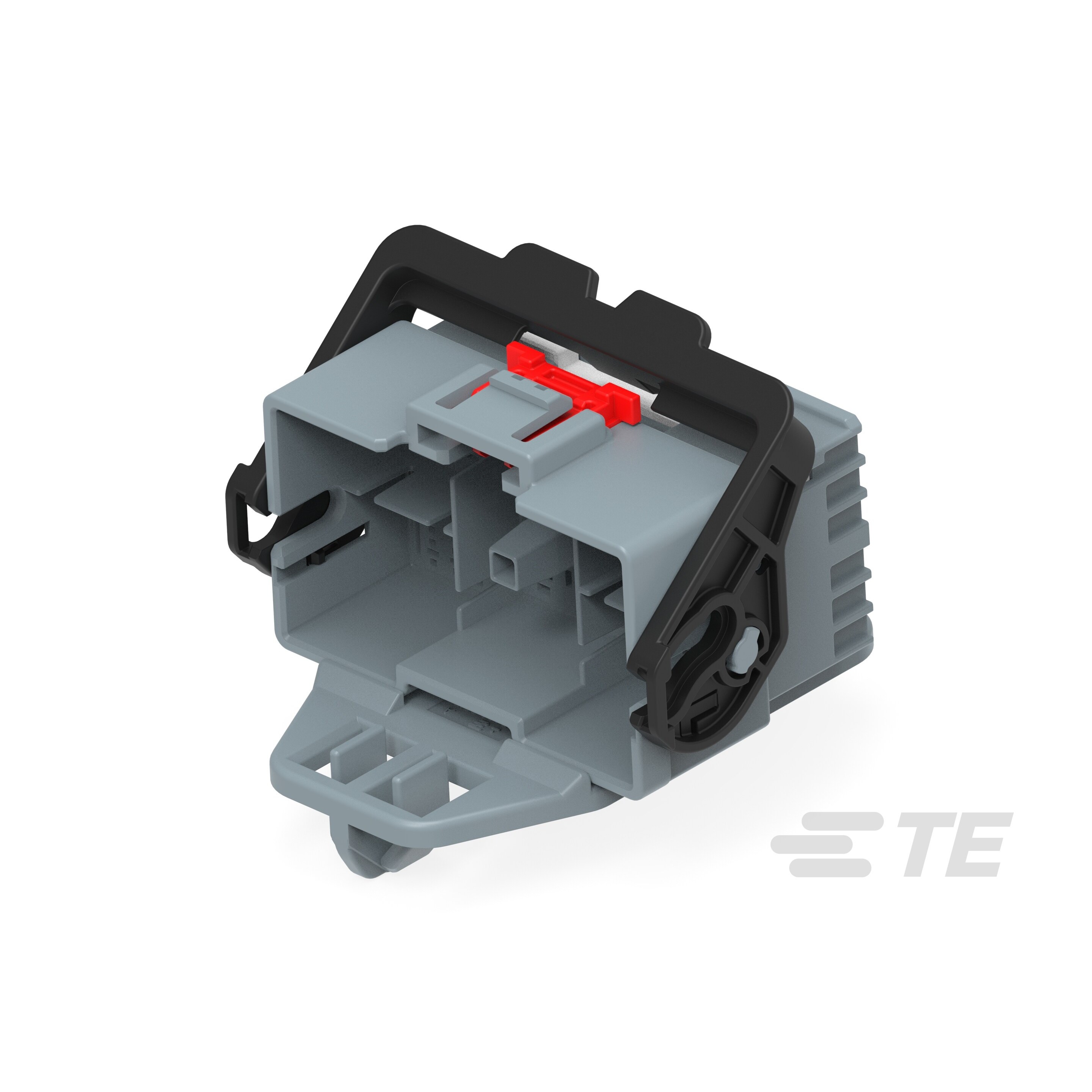

MT3/JPT/SPT HYB 58P CAP ASSY
3-2005275-3
ActiveTE Connectivity AMP Connectors
MT3/JPT/SPT HYB 58P CAP ASSY
Description
General part information
3-2005275-3
58 Position Housing, Housing for Male Terminals, Wire-to-Wire, 11.6 mm / 3.5 mm [.13 in / .45 in] Centerline, Gray, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2005275-3 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Lock |
| Features | Connector Position Assurance (CPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 58 |
| Number of Rows | 6 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Row Spacing | 0.165 in |
