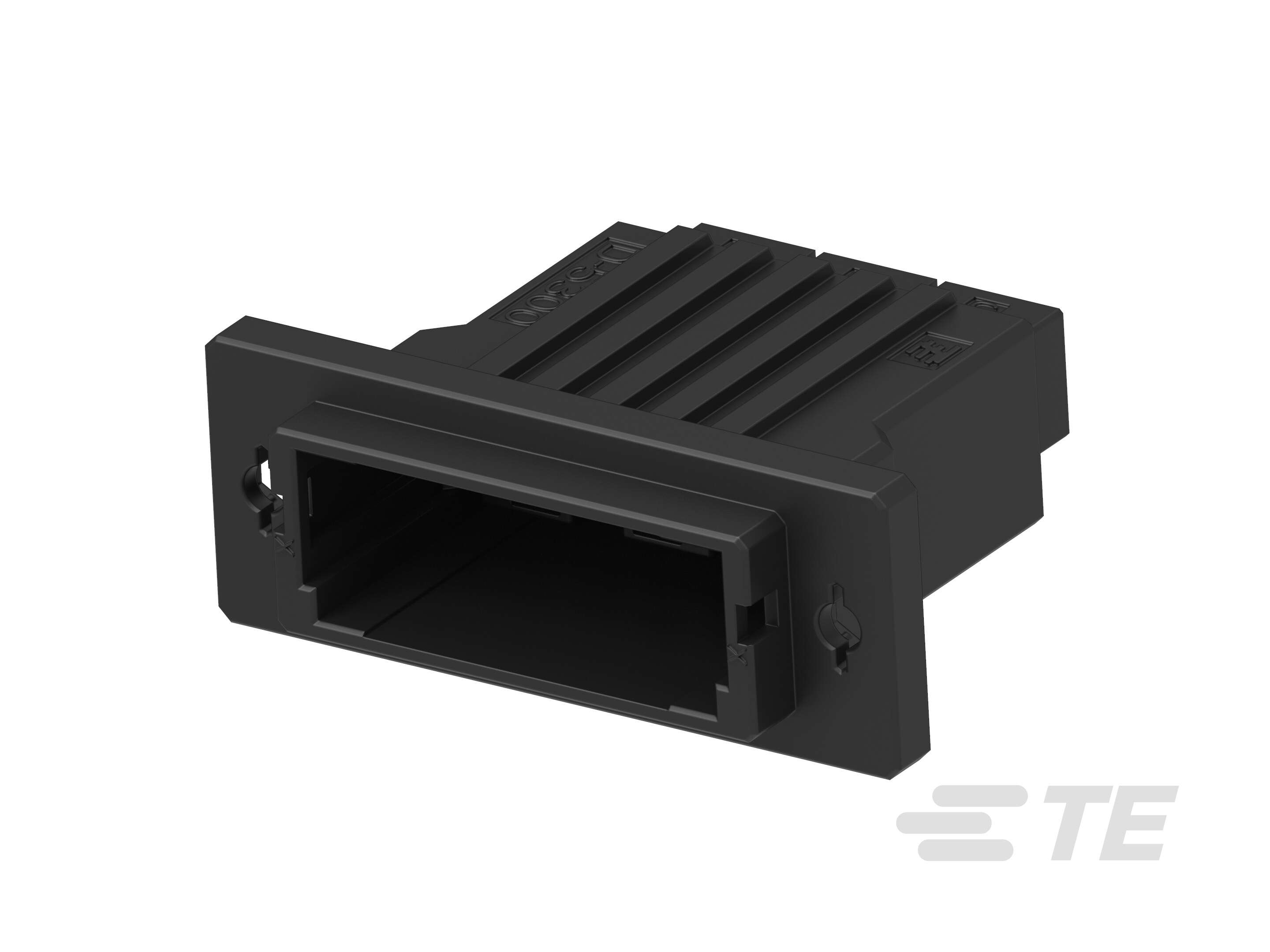

Specification	2-1747821-3

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Material	Glass Filled, Thermoplastic
Mounting Type	Free Hanging (In-Line), Panel Mount
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.4 in

Dynamic 5000 Series Series

...

Part	Insulation Height	Pitch - Mating	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Style	Number of Rows	Contact Finish Thickness - Mating	Number of Positions	Voltage Rating	Contact Finish - Mating	Insulation Material	Features	Number of Positions Loaded	Ingress Protection	Contact Type	Contact Length - Post	Shrouding	Mounting Type	Fastening Type	Termination	Current Rating	Contact Finish - Post	Material Flammability Rating	Row Spacing - Mating	Contact Material	Insulation Color	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Contact Termination	Contact Finish Thickness	Pin or Socket	Color	Pitch	Row Spacing	Note
TE Connectivity AMP Connectors 1-1318983-6	1.215 in	0.4 in	Header	-55 °C	105 °C	Rectangular	Board Cable/Wire	2	100 µin	4	630 V	Silver	Glass Filled Polyester Thermoplastic	Board Lock	All	IP20	Tab	0.15 in	Shrouded - 4 Wall	Right Angle Through Hole	Detent Lock	Solder	45 A	Tin	UL94 V-0	0.4 in	Copper Alloy	Black
TE Connectivity AMP Connectors 3-1123829-1	1.035 in	0.4 in	Plug	-55 °C	105 °C	Rectangular	Board Cable/Wire	2	15 µin	8	630 V	Gold	Glass Filled Polyester		All		Tab	0.15 in	Shrouded - 4 Wall	Through Hole	Latch Lock	Solder	30 A	Tin	UL94 V-0	0.4 in	Copper Alloy	Black
TE Connectivity AMP Connectors 84695-1																													12 AWG	10 AWG	Gold	Crimp	8 µin	Tab
TE Connectivity AMP Connectors 917807-2			Receptacle	-55 °C	105 °C			2		4			Glass Filled Polyester Thermoplastic				Female Socket			Free Hanging (In-Line)												Crimp			Black	0.4 in	0.4 in
TE Connectivity AMP Connectors 2-179958-4			Receptacle	-55 °C	105 °C			1		4			Glass Filled Polyester Thermoplastic	Polarizing Key			Female Socket			Free Hanging (In-Line)												Crimp			Black	0.4 in
TE Connectivity AMP Connectors 1318985-6																													20.5 AWG	16 AWG	Silver	Crimp	100 µin	Socket
TE Connectivity AMP Connectors 6-179960-2	1.26 in	0.4 in	Header	-55 °C	105 °C	Rectangular	Board Cable/Wire	1	15 µin	6	630 V	Gold	Glass Filled Polyester Thermoplastic	Board Lock	All	IP20	Tab		Shrouded - 4 Wall	Through Hole	Detent Lock	Solder	30 A	Tin	UL94 V-0		Copper Alloy	Black
TE Connectivity AMP Connectors 1-917808-3			Plug	-55 °C	105 °C			2		6			Glass Filled Polyester Thermoplastic	Polarizing Key			Male Pin			Free Hanging (In-Line)												Crimp			Black	0.4 in	0.4 in	Contacts Not Included
TE Connectivity AMP Connectors 917805-3																													12 AWG	10 AWG	Gold	Crimp	30 µin	Pin
TE Connectivity AMP Connectors 3-1318983-6	1.215 in	0.4 in	Header	-55 °C	105 °C	Rectangular	Board Cable/Wire	2	100 µin	4	630 V	Silver	Glass Filled Polyester Thermoplastic	Board Lock	All	IP20	Tab	0.15 in	Shrouded - 4 Wall	Right Angle Through Hole	Detent Lock	Solder	45 A	Tin	UL94 V-0	0.4 in	Copper Alloy	Black
