2098407-3
ActiveTE Connectivity AMP Connectors

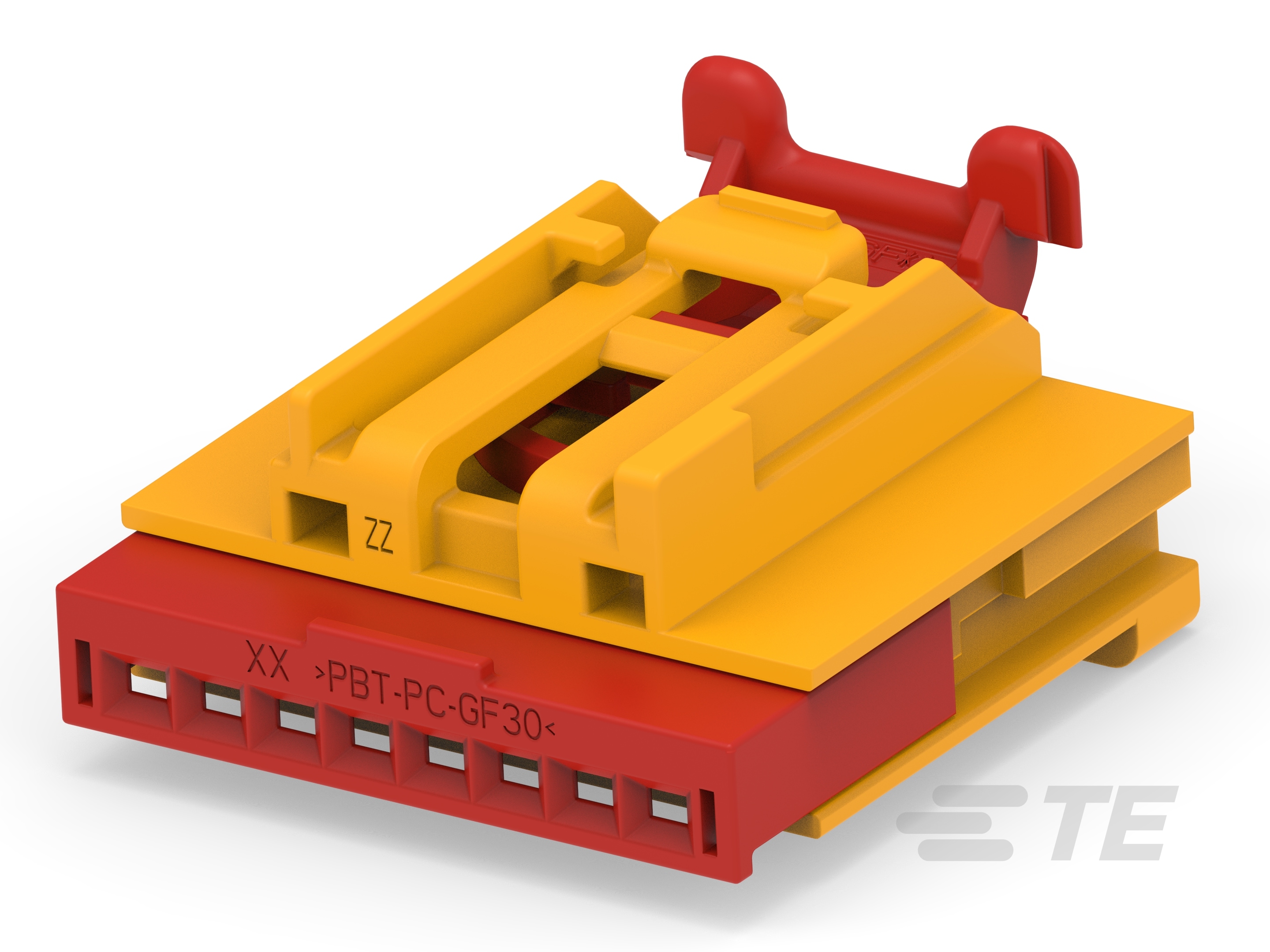

1X8 FEMALE ASSY YELLOW KEY B
2098407-3
ActiveTE Connectivity AMP Connectors
1X8 FEMALE ASSY YELLOW KEY B
Description
General part information
2098407-3
8 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.54 mm [.1 in] Centerline, Yellow, Wire & Cable, Get .64 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 2098407-3 |
|---|---|
| Color | Yellow |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
