Specification	LMR-400-FR-W

Cable Type	Riser, Coaxial
Conductor Material	Copper Coated, Aluminum
Conductor Strand	Solid
Dielectric Diameter	0.285 in
Dielectric Material	Foam Polyethylene (FPE)
Features	Fire Retardant
Impedance	50 Ohm
Jacket (Insulation) Diameter	0.405 in
Jacket (Insulation) Material	Polyethylene (PE), Riser
Jacket Color	White
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid
Velocity of Propagation (VoP)	84 %

LMR-400 Series

Part	Conductor Strand	Impedance	Jacket Color	Cable Type	Jacket (Insulation) Material	Shield Type	Length	Jacket (Insulation) Diameter	Dielectric Material	Shield Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Diameter	Conductor Material	Velocity of Propagation (VoP)	Features	Length	Spool Size
McGill Microwave Systems LMR-400-PVC	Solid	50 Ohm	Black	Coaxial	Poly-Vinyl Chloride (PVC)	Braid	Enter Number of Feet in Order Quantity	0.405 in	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-40 °C	85 °C	0.285 in	Aluminum Copper Coated	84 %
McGill Microwave Systems LMR-400-UF-DB		50 Ohm	Black	Coaxial	Thermoplastic Elastomer (TPE)	Braid		0.405 in	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-40 °C	85 °C	0.285 in	Bare Copper	83 %	Direct Burial Watertight
McGill Microwave Systems LMR-400-75-FR	Solid	75 Ohm	Black	Coaxial	Polyethylene (PE)	Braid		0.405 in	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-40 °C	85 °C	0.285 in	Bare Copper	85 %	Fire Retardant

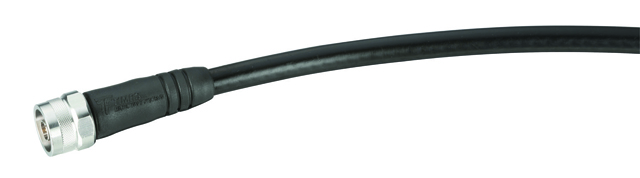

McGill Microwave Systems LMR-400-RR-DB	Solid	50 Ohm	Black	Coaxial	Polyethylene (PE)	Braid		0.405 in	Foam Polyethylene (FPE)	Aluminum	-40 °C	85 °C		Bare Copper	84 %	Direct Burial Watertight	500 ft
McGill Microwave Systems LMR-400-UF-FR		50 Ohm	Black	Coaxial	Polyethylene (PE) Riser	Braid	Enter Number of Feet in Order Quantity	0.405 in	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-40 °C	85 °C	0.285 in	Bare Copper	83 %	Fire Retardant		500 ft
McGill Microwave Systems LMR-400-UF		50 Ohm	Black	Coaxial	Thermoplastic Elastomer (TPE)	Braid	Enter Number of Feet in Order Quantity	0.405 in	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-40 °C	85 °C	0.285 in	Bare Copper	83 %		10 ft 50 ft 100 ft 250 ft
McGill Microwave Systems LMR-400-PVC-W	Solid	50 Ohm	White	Coaxial	Poly-Vinyl Chloride (PVC)	Braid		0.405 in	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-40 °C	85 °C	0.285 in	Aluminum Copper Coated	84 %
McGill Microwave Systems LMR-400-FR	Solid	50 Ohm	Black	Coaxial Riser	Polyethylene (PE) Riser	Braid	Enter Number of Feet in Order Quantity	0.405 in	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-40 °C	85 °C	0.285 in	Aluminum Copper Coated	84 %	Fire Retardant	10 ft 50 ft 100 ft 250 ft
McGill Microwave Systems LMR-400-LLPX	Solid	50 Ohm	Red	Coaxial Plenum	Fluoropolymer Plenum	Braid Foil	Enter Number of Feet in Order Quantity	0.37 in	Polytetrafluoroethylene (PTFE)	Aluminum Copper Tinned	-40 °C	125 °C	0.285 in	Aluminum Copper Coated	76 %		10 ft 50 ft 100 ft
McGill Microwave Systems LMR-400-FR-PVC	Solid	50 Ohm	Black	Coaxial Riser	Poly-Vinyl Chloride (PVC) Riser	Braid	Enter Number of Feet in Order Quantity	0.405 in	Foam Polyethylene (FPE)	Aluminum Copper Tinned	-40 °C	85 °C	0.285 in	Aluminum Copper Coated	84 %	Fire Retardant		500 ft
