Description
General part information

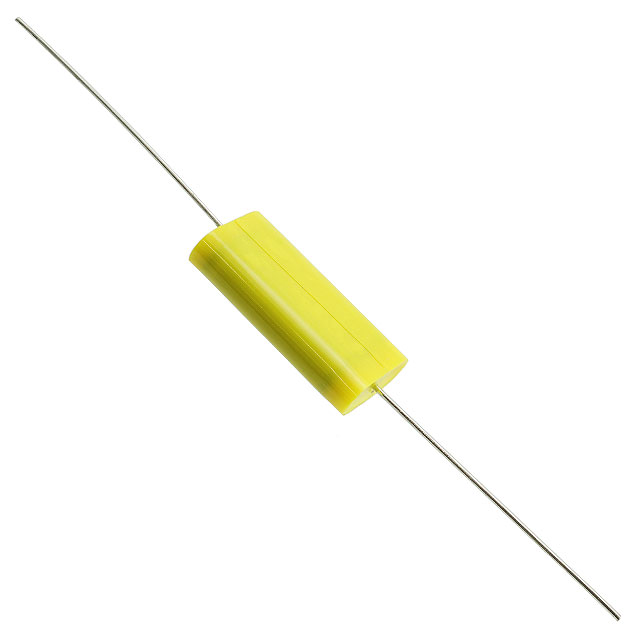

QAK2G684KTP
0.68 µF Film Capacitor 400V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | QAK2G684KTP |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.68 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Size / Dimension Length | 1.102 in |
| Size / Dimension Thickness | 0.295 in |
| Size / Dimension Width | 0.669 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
