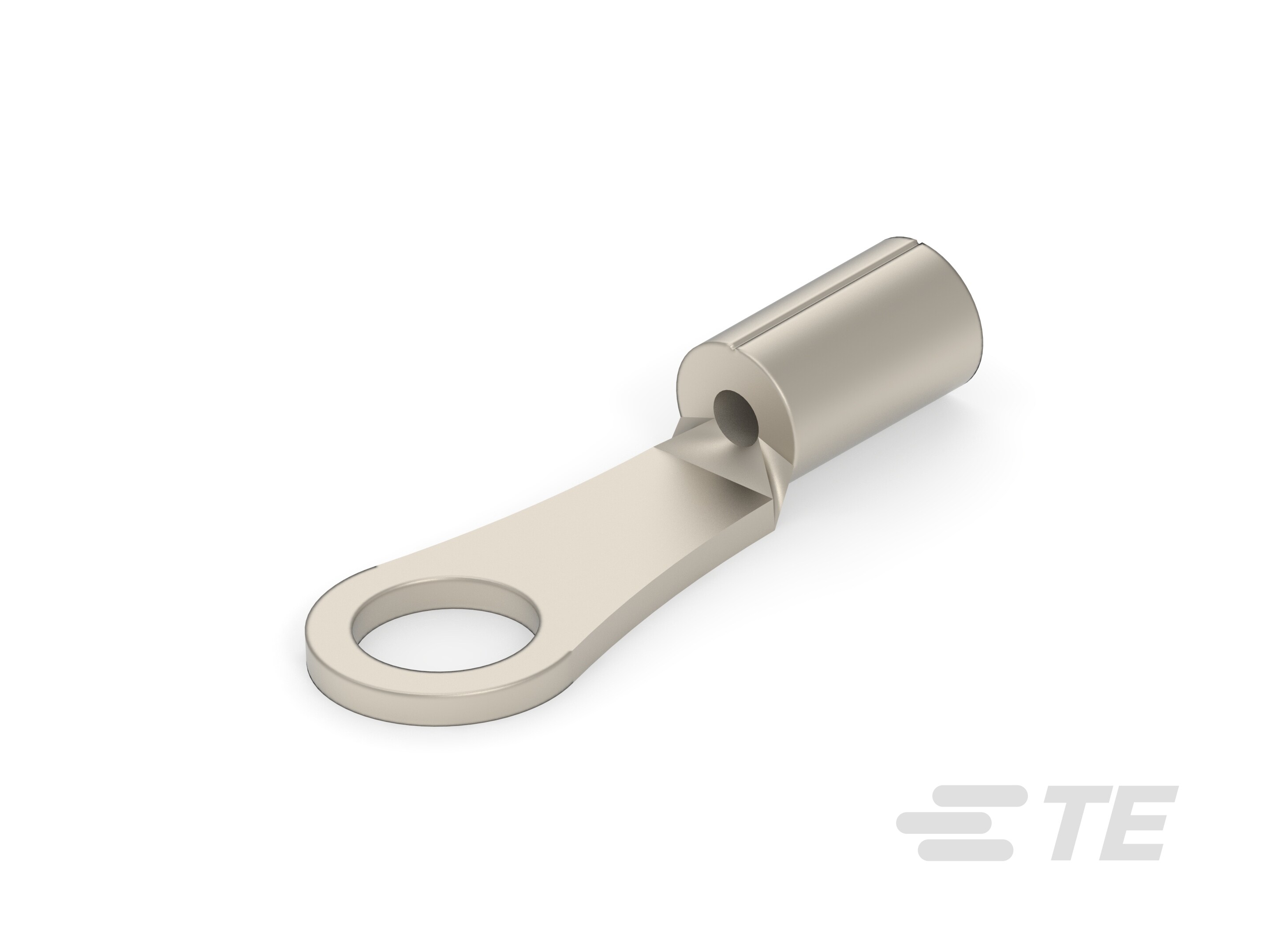

Specification	50334-2

Contact Finish	Gold
Contact Material	Copper
Features	Serrated Termination, Brazed Seam
Insulation	Non-Insulated
Length - Overall	0.419 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	2 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.018 in
Width - Outer Edges	0.14 in
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	22 AWG

SOLISTRAND Series

Part	Length - Overall	Contact Finish	Mounting Type	Terminal Type	Stud/Tab Size	Width - Outer Edges	Insulation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Features	Termination	Number of Wire Entries	Wire Gauge	Wire Gauge (Cross-Sectional Area) (Min)	Wire Gauge (Cross-Sectional Area) (Max)	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Color	Thickness	Diameter - Barrel OD	Diameter - Ring ID	Diameter - Barrel ID	Terminal Style	Tab Thickness
TE Connectivity AMP Connectors 52713-1	0.756 in	Tin	Free Hanging (In-Line)	Snap Spring	8 Stud	0.281 in	Non-Insulated	16 AWG	14 AWG	Phosphor Bronze	Brazed Seam Serrated Termination	Crimp
TE Connectivity AMP Connectors 32151				Butt Splice Individual Openings Inline			Non-Insulated	12 AWG	10 AWG		Brazed Seam Serrated Mating Area	Crimp	2
TE Connectivity AMP Connectors 53123-2	0.576 in	Tin	Free Hanging (In-Line)	Snap Spring	6 Stud	0.25 in	Non-Insulated	16 AWG	14 AWG	Phosphor Bronze	Brazed Seam Serrated Termination	Crimp
TE Connectivity AMP Connectors 134540-1				Butt Splice Individual Openings Inline			Non-Insulated	16 AWG	14 AWG			Crimp	2	14-16 AWG	1 mm²	2.6 mm²
TE Connectivity AMP Connectors 31818				Butt Splice Individual Openings Inline			Non-Insulated	22 AWG	16 AWG		Brazed Seam Serrated Mating Area	Crimp	2
TE Connectivity AMP Connectors 9-1377172-7	0.858 in	Tin	Free Hanging (In-Line)	Circular	8 Stud	0.315 in	Insulated	22 AWG	16 AWG	Copper	Serrated Termination	Crimp					0.106 in	0.14 in	Poly-Vinyl Chloride PVC	Red	0.032 in
TE Connectivity AMP Connectors 34117	0.685 in	Tin	Free Hanging (In-Line)	Standard	8 Stud	0.375 in	Non-Insulated	22 AWG	16 AWG	Copper	Brazed Seam Serrated Termination	Crimp
TE Connectivity AMP Connectors 34318				Individual Openings (Parallel) Inline			Non-Insulated				Brazed Seam Serrated Mating Area	Crimp	2	8 AWG
TE Connectivity AMP Connectors 184147-1	1.437 in	Tin	Free Hanging (In-Line) Right Angle	Circular	10 Stud	0.713 in	Non-Insulated			Copper	Brazed Seam Serrated Termination	Crimb Flag		2 AWG							0.057 in
TE Connectivity AMP Connectors 55799-1	1.334 in	Tin	Free Hanging (In-Line)	Rectangular Tongue	8 Stud	0.4 in	Non-Insulated	12 AWG	10 AWG	Copper	Brazed Seam Serrated Termination	Crimp										0.226 in	0.171 in	0.129 in	Round Slotted	0.039 in
