NFR0300003308JAC00
ObsoleteVishay Dale
RES 3.3 OHM 3W 5% AXIAL
NFR0300003308JAC00
ObsoleteVishay Dale
RES 3.3 OHM 3W 5% AXIAL
Description
General part information
NFR0300003308JAC00

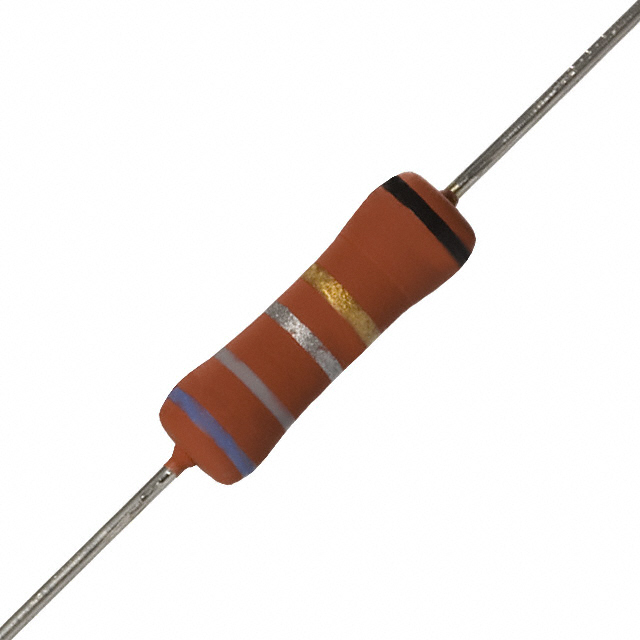

3.3 Ohms ±5% 3W Through Hole Resistor Axial Flame Proof, Fusible, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | NFR0300003308JAC00 |
|---|---|
| Composition | Metal Film |
| Features | Flame Proof, Safety, Fusible |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 3 W |
| Resistance | 3.3 Ohm |
| Size / Dimension Diameter | 0.209 in |
| Size / Dimension Length | 0.657 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
