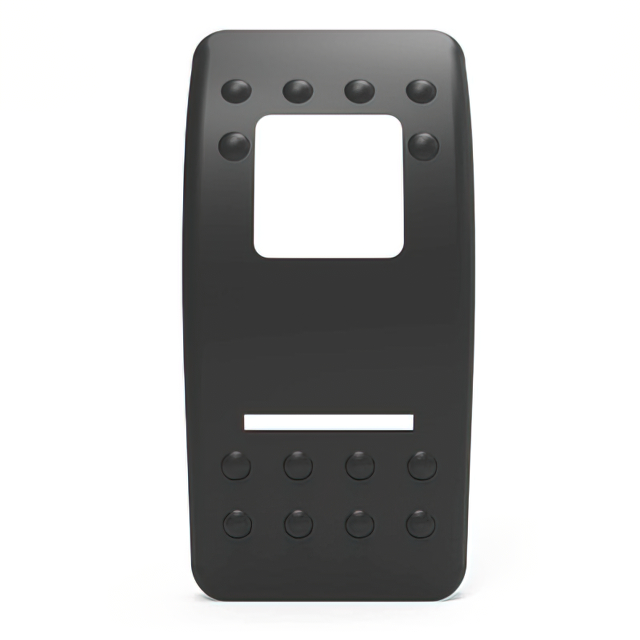

Specification	VVAAC00-000

Color	White Lens, Black
For Use With/Related Products	Contura V Series
Illumination	Illumination Opening
Mounting Type	Snap Fit
Shape	Convex (Domed), Rectangular
Size Height	12.83 mm
Size Length	49.09 mm
Size Width	23.88 mm
Switch Type	Rocker

V Series

...

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Current Rating	Approval Agency	Quick Connect Size (0.250")	Termination Style	Voltage Rating - DC	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Ingress Protection Description	Ingress Protection IP Rating	Circuit	Switch Function	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Color - Actuator/Cap	Mounting Type	Actuator Marking	Color	Illumination Type	Illumination Voltage (Nominal)	Voltage Rating - AC
Carling Technologies V1D2SW0B-AZD00-0	100000 Cycles	100000 Cycles	20 A	CSA UL VDE	0.25 in	Quick Connect	12 V	21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPST	On-Off	-40 °C	85 °C	Locking	Black	Panel Mount Snap-In	No Marking
Carling Technologies V1D1BC0B-A9BMH-100			20 A	CSA UL VDE	0.25 in	Quick Connect	12 V	21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPST	On-Off	-40 °C	85 °C	Convex (Reverse V) Illuminated	Black	Panel Mount Snap-In	Master Light - High Beam Vertical	Red	LED	12 V
Carling Technologies V1DABC0B-ARCMA-100			20 A	CSA UL VDE	0.25 in	Quick Connect	12 V	21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPST	On-Off	-40 °C	85 °C	Convex (Reverse V) Illuminated	Black	Panel Mount Snap-In	Master Light - High Beam Vertical	Red	LED	12 V
Carling Technologies V151S00C-BZC17-000			15 A	CSA UL VDE	0.25 in	Quick Connect		21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPST	On-Off	-40 °C	85 °C	Convex (Reverse V)	Black	Panel Mount Snap-In	O I				125 V
Carling Technologies V1B2S00B-AZB00-000			15 A	CSA UL VDE	0.25 in	Quick Connect	24 V	21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPST	On-Off	-40 °C	85 °C	Convex (Reverse V)	Black	Panel Mount Snap-In	No Marking
Carling Technologies V4D1S00C-AZC00-000			20 A	CSA UL VDE	0.25 in	Quick Connect	12 V	21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPDT	On-On	-40 °C	85 °C	Convex (Reverse V)	Black	Panel Mount Snap-In	No Marking
Carling Technologies V1D2BH0B-AKC00-000	100000 Cycles	100000 Cycles	20 A	CSA UL VDE	0.25 in	Quick Connect	12 V	21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPST	On-Off	-40 °C	85 °C	Convex (Reverse V) Illuminated	Black	Panel Mount Snap-In	No Marking	Green	LED	12 V
Carling Technologies V141S00B-00000-000			15 A	CSA UL VDE	0.25 in	Quick Connect		21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPST	On-Off	-40 °C	85 °C	Actuator Arm Cap Required		Panel Mount Snap-In	Varies by Cap				125 V
Carling Technologies V1B1GJVC-AAC55-100			15 A	CSA UL VDE	0.25 in	Quick Connect	24 V	21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPST	On-Off	-40 °C	85 °C	Convex (Reverse V) Illuminated	Black	Panel Mount Snap-In	Master Light - High Beam Vertical	Green Red	LED	24 V
Carling Technologies V1DABC0B-AMC00-000	100000 Cycles	100000 Cycles	20 A	CSA UL VDE	0.25 in	Quick Connect	12 V	21.08 mm	Rectangular	36.83 mm	Dust Tight Water Resistant Waterproof	IP66 IP68	SPST	On-Off	-40 °C	85 °C	Convex (Reverse V) Illuminated	Black	Panel Mount Snap-In	No Marking	Red	LED	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN
