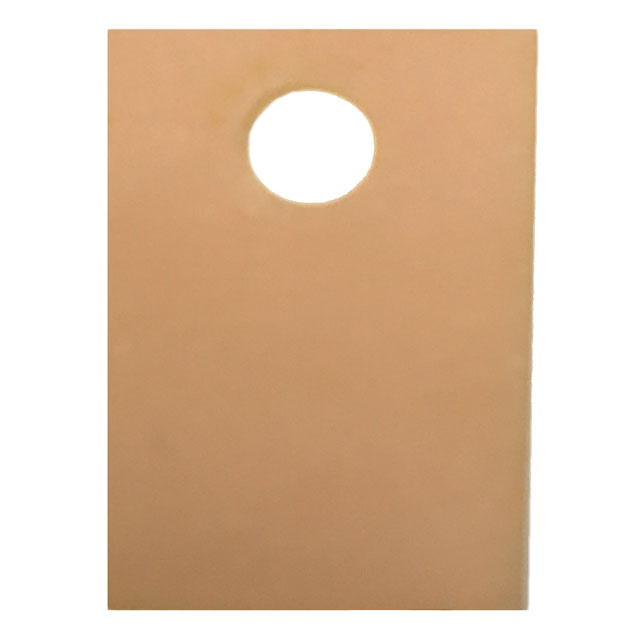

Specification	CD-02-05-220

Backing	Polyimide
Carrier	Polyimide
Color	Orange
Material	Phase Change Compound
Outline Length	17.78 mm
Outline Width	12.7 mm
Shape	Rectangular
Shelf Life	Indefinite
Storage/Refrigeration Temperature (Maximum)	95 °F
Thickness	0.003 in
Type	Pad, Sheet
Usage	TO-220

CD-02-05 Series

Part	Color	Shape	Material	Usage	Backing	Carrier	Storage/Refrigeration Temperature (Maximum)	Outline Length	Outline Width	Type	Shelf Life	Thickness	Outline Diameter
Wakefield Thermal Solutions CD-02-05-247	Orange	Rectangular	Phase Change Compound	TO-247	Polyimide	Polyimide	95 °F	24.13 mm	19.05 mm	Pad Sheet	Indefinite	0.003 in
Wakefield Thermal Solutions CD-02-05-3-2	Orange	Rhombus	Phase Change Compound	TO-3	Polyimide	Polyimide		39.37 mm	26.67 mm	Pad Sheet		0.003 in
Wakefield Thermal Solutions CD-02-05-220-N	Orange	Rectangular	Phase Change Compound	TO-220	Polyimide	Polyimide	95 °F	17.78 mm	12.7 mm	Pad Sheet	Indefinite	0.003 in
Wakefield Thermal Solutions CD-02-05-LED-2	Orange	Round	Phase Change Compound	LED	Polyimide	Polyimide	95 °F			Pad Sheet	Indefinite	0.003 in	50.8 mm
Wakefield Thermal Solutions CD-02-05-C-20	Orange	Square	Phase Change Compound		Polyimide	Polyimide		19.51 mm	19.51 mm	Pad Sheet		0.003 in
Wakefield Thermal Solutions CD-02-05-247-3	Orange	Rectangular	Phase Change Compound	TO-247	Polyimide	Polyimide		57.15 mm	24.13 mm	Pad Sheet		0.003 in
Wakefield Thermal Solutions CD-02-05-220-N	Orange	Rectangular	Phase Change Compound	TO-220	Polyimide	Polyimide		17.78 mm	12.7 mm	Pad Sheet		0.003 in
Wakefield Thermal Solutions CD-02-05-C-34	Orange	Square	Phase Change Compound		Polyimide	Polyimide	95 °F	33.5 mm	33.5 mm	Pad Sheet	Indefinite	0.003 in
Wakefield Thermal Solutions CD-02-05-3-4	Orange	Rhombus	Phase Change Compound	TO-3	Polyimide	Polyimide		39.37 mm	26.67 mm	Pad Sheet		0.003 in
Wakefield Thermal Solutions CD-02-05-C-46	Orange	Square	Phase Change Compound		Polyimide	Polyimide		46 mm	46 mm	Pad Sheet		0.003 in
