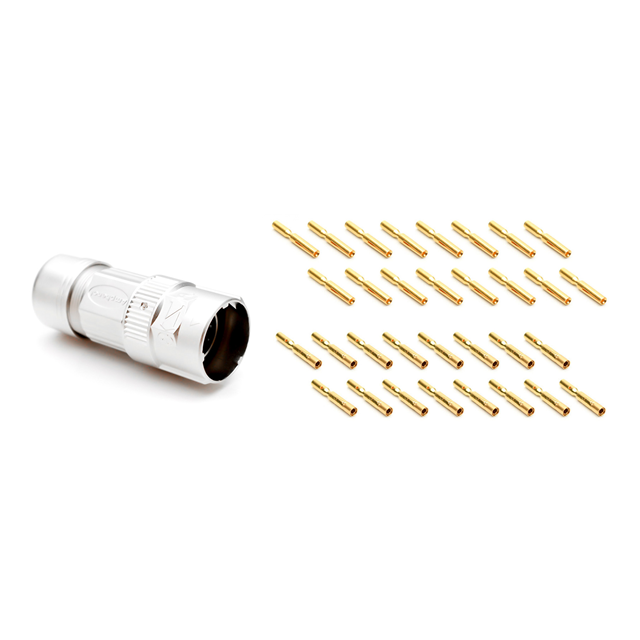

Specification	MA5CAE1600S-S1-KIT

Applications	Industrial, Communication Systems, Medical
Backshell Material	Zinc Die Cast
Cable Opening (Max)	0.295 in
Cable Opening (Min)	0.177 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	9 A
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	E
Plating	Nickel
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-16
Shielding	Shielded
Termination	Crimp
Voltage Rating	125 V
Voltage Rating (Type)	DC

MA5CAE Series

Part	Contact Finish - Mating	Cable Opening (Min)	Cable Opening (Max)	Shell Material	Material Flammability Rating	Orientation	Shielding	Mounting Type	Voltage Rating	Voltage Rating (Type)	Insert Material	Fastening Type	Current Rating	Features	Applications	Ingress Protection Description	Ingress Protection IP Rating	Color	Operating Temperature (Min)	Operating Temperature (Max)	Plating	Backshell Material	Primary Material	Contact Material	Shell Finish	Connector Type	Shell Size - Insert	Number of Positions	Termination	Contact Type	Contact Size	Housing Color	Note	Type	Contact Shape
McGill Microwave Systems MA5CAE1600S-S2-KIT	Gold	0.295 in	0.433 in	Zinc Die Cast	UL94 V-0	E	Shielded	Free Hanging (In-Line)	125 V	DC	Nylon 6/6 PA66 Polyamide	Push-Twist	9 A	Backshell Coupling Nut	Communication Systems Industrial Medical	Dust Tight Waterproof	IP67	Silver	-20 °C	130 °C	Nickel	Zinc Die Cast	Metal	Copper Alloy	Nickel	Female Sockets Plug	M23-16	16	Crimp
McGill Microwave Systems MA5CAE1700-S2				Zinc Die Cast	UL94 V-0	N (Normal)	Shielded	Free Hanging (In-Line)			Nylon 6/6 PA66 Polyamide	Push-Twist		Backshell Coupling Nut		Dust Tight Waterproof	IP67		-20 °C	130 °C					Nickel	Plug Housing	M23-17	17		Crimp	1 mm	Silver	Contacts Not Included	For Female Sockets or Male Pins	Circular
McGill Microwave Systems MA5CAE1200S-S1-KIT	Gold			Zinc Die Cast		N (Normal)	Shielded	Free Hanging (In-Line)	160 V			Push-Twist	10 A	Backshell Coupling Nut		Dust Tight Waterproof	IP67	Silver	-20 °C	130 °C			Metal		Nickel	Female Sockets Plug	M23-12	12	Crimp
McGill Microwave Systems MA5CAE1200S-S3-KIT	Gold			Zinc Die Cast		N (Normal)	Shielded	Free Hanging (In-Line)	160 V			Push-Twist	10 A	Backshell Coupling Nut		Dust Tight Waterproof	IP67	Silver	-20 °C	130 °C			Metal		Nickel	Female Sockets Plug	M23-12	12	Crimp
McGill Microwave Systems MA5CAE1200S-S2-KIT	Gold			Zinc Die Cast		N (Normal)	Shielded	Free Hanging (In-Line)	160 V			Push-Twist	10 A	Backshell Coupling Nut		Dust Tight Waterproof	IP67	Silver	-20 °C	130 °C			Metal		Nickel	Female Sockets Plug	M23-12	12	Crimp
McGill Microwave Systems MA5CAE1200-S2				Zinc Die Cast	UL94 V-0	N (Normal)	Shielded	Free Hanging (In-Line)			Nylon 6/6 PA66 Polyamide	Push-Twist		Backshell Coupling Nut		Dust Tight Waterproof	IP67		-20 °C	130 °C					Nickel	Plug Housing	M23-12	12		Crimp	1 mm	Silver	Contacts Not Included	For Female Sockets or Male Pins	Circular
McGill Microwave Systems MA5CAE1600-S1				Zinc Die Cast	UL94 V-0	N (Normal)	Shielded	Free Hanging (In-Line)			Nylon 6/6 PA66 Polyamide	Push-Twist		Backshell Coupling Nut		Dust Tight Waterproof	IP67		-20 °C	130 °C					Nickel	Plug Housing	M23-16	16		Crimp	1 mm	Silver	Contacts Not Included	For Female Sockets or Male Pins	Circular
McGill Microwave Systems MA5CAE1200-S2-KIT	Gold			Zinc Die Cast		N (Normal)	Shielded	Free Hanging (In-Line)	160 V			Push-Twist	10 A	Backshell Coupling Nut		Dust Tight Waterproof	IP67	Silver	-20 °C	130 °C			Metal		Nickel	Male Pins Plug	M23-12	12	Crimp
McGill Microwave Systems MA5CAE1700S-S2-KIT	Gold			Zinc Die Cast		N (Normal)	Shielded	Free Hanging (In-Line)	125 V	DC		Push-Twist	9 A	Backshell Coupling Nut		Dust Tight Waterproof	IP67	Silver	-20 °C	130 °C			Metal		Nickel	Female Sockets Plug	M23-17	17	Crimp
McGill Microwave Systems MA5CAE1200-S1-KIT	Gold			Zinc Die Cast		N (Normal)	Shielded	Free Hanging (In-Line)	160 V			Push-Twist	10 A	Backshell Coupling Nut		Dust Tight Waterproof	IP67	Silver	-20 °C	130 °C			Metal		Nickel	Male Pins Plug	M23-12	12	Crimp
