B59975C0160A054
ObsoleteEPCOS - TDK Electronics
PTC RESET FUSE 20V 550MA RADIAL
B59975C0160A054
ObsoleteEPCOS - TDK Electronics
PTC RESET FUSE 20V 550MA RADIAL
Description
General part information
B59975C0160A054

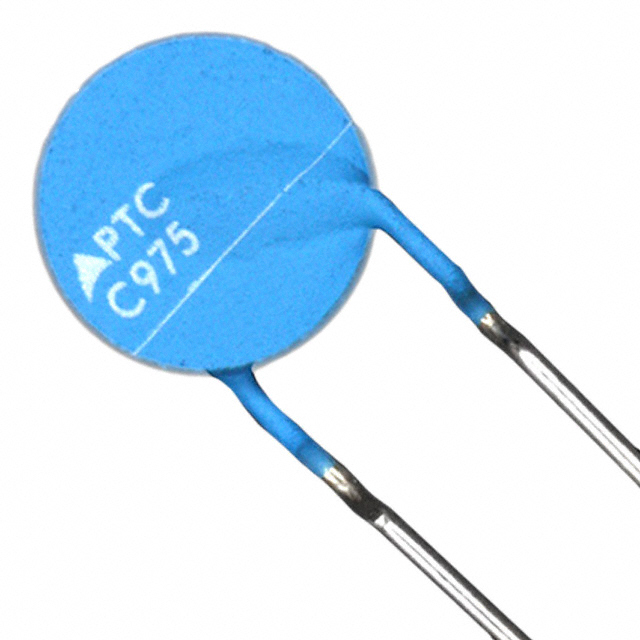

Ceramic PTC Resettable Fuse 20V 550 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | B59975C0160A054 |
|---|---|
| Approval Agency | UR |
| Current - Hold (Ih) (Max) | 550 mA |
| Current - Max | 3 A |
| Current - Trip (It) | 1.1 A |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 1.8 Ohms |
| Size / Dimension Diameter | 0.354 in |
| Size / Dimension Thickness | 0.138 in |
| Type | Ceramic |
| Voltage - Max | 20 V |
