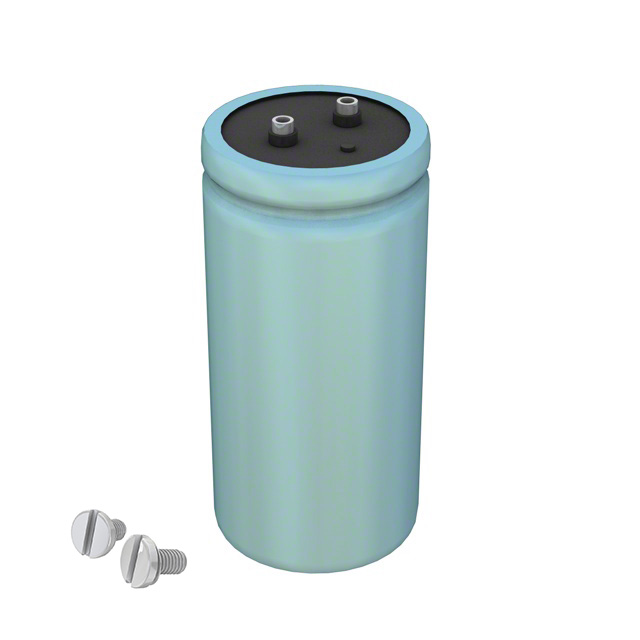

CGH242T500W5C
ActiveCornell Dubilier Knowles
CAP ALUM 2400UF 500V SCREW CHAS
CGH242T500W5C
ActiveCornell Dubilier Knowles
CAP ALUM 2400UF 500V SCREW CHAS
Description
General part information
CGH242T500W5C
2400 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 106mOhm @ 120Hz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CGH242T500W5C |
|---|---|
| Applications | General Purpose |
| Capacitance | 2400 µF |
| ESR (Equivalent Series Resistance) | 106 mOhm |
| Height - Seated (Max) | 5.125 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 5.3 A |
| Size / Dimension Diameter | 2.5 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 500 V |
