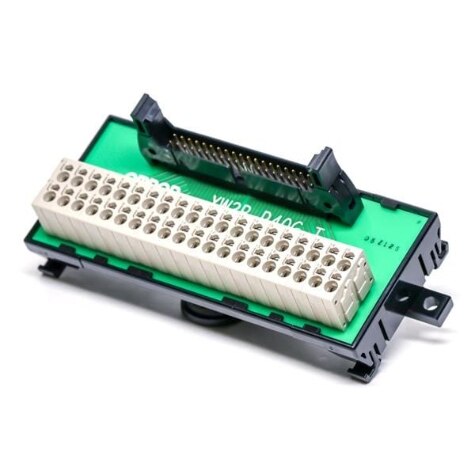

XW2R-E40GD-T
ActiveOmron Automation and Safety
TERMINAL BLOCK INTERFACE MODULES XW2R I/O TB CLAMP 40PT GEN DIN
XW2R-E40GD-T
ActiveOmron Automation and Safety
TERMINAL BLOCK INTERFACE MODULES XW2R I/O TB CLAMP 40PT GEN DIN
Description
General part information
XW2R-E40GD-T
TERMINAL BLOCK INTERFACE MODULES XW2R I/O TB CLAMP 40PT GEN DIN
Technical Specifications
Parameters and characteristics for this part
| Specification | XW2R-E40GD-T |
|---|---|
| Control Side Cable Retainer Type | Latches |
| Control Side Connection Gender | Male |
| Control Side Connection Shape | Rectangular |
| Current Rating (Per Contact) | 1 A |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Positions / Poles | 40 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 24 VAC, 125 VAC |
| Width | 1.969 in |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
