P091N-FC25BR10K

Active

TT Electronics/BI

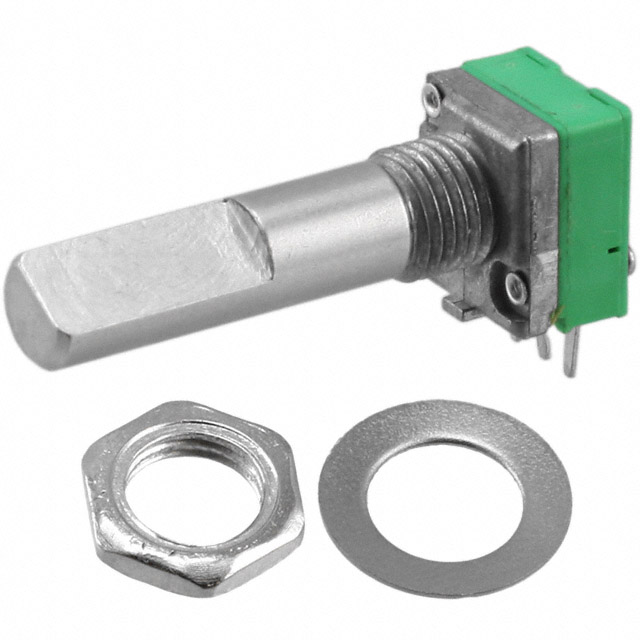

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P091N-FC25BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.53
		10	$ 2.23
		25	$ 2.00
		40	$ 1.92
		80	$ 1.84
		230	$ 1.77
		440	$ 1.46
		1040	$ 1.38
		5200	$ 1.15

Description

General part information

P091N Series

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P091N-FC25BR10K	P091N Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	-	20 mm
Actuator Length	-	0.591 - 0.787 in
Actuator Length	-	15 mm
Actuator Length [x]	0.984 in	0.984 in
Actuator Length [x]	25 mm	25 mm
Actuator Type	Flatted	Flatted, Knurled and Slotted
Adjustment Type	Side Adjustment	Side Adjustment
Built in Switch	False	False
Bushing Thread	0.75	0.75
Bushing Thread	M7	M7
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.05 W	0.025 - 0.05 W
Power (Watts)	50 mW	50 mW
Power (Watts)	-	0.025 W
Resistance (Ohms)	10k	10k
Resistance (Ohms)	-	5 - 500 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body [x]	0.447 in	0.447 in
Size - Body [x]	11.35 mm	11.35 mm
Size - Body [y]	0.374 in	0.374 in
Size - Body [y]	9.5 mm	9.5 mm
Taper	Linear	Logarithmic, Linear
Termination Style	Board Locks, PC Pins	Board Locks, PC Pins
Tolerance	20 %	20 %

P091N Series

POT 500K OHM 1/40W PLASTIC LOG

Part	Termination Style	Resistive Material	Actuator Length [x]	Actuator Length [x]	Rotation	Power (Watts)	Power (Watts)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Number of Gangs	Actuator Type	Taper	Resistance (Ohms)	Adjustment Type	Size - Body [y]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Number of Turns	Bushing Thread	Bushing Thread	Tolerance	Power (Watts)	Actuator Length [z]	Actuator Length [z]	Actuator Length	Resistance (Ohms)
TT Electronics/BI P091N-FC25AR500K	Board Locks, PC Pins	Conductive Plastic	0.984 in	25 mm	300 ░	0.025 W	0.025 W	0.236 in	6 mm	1	Flatted	Logarithmic	500 kOhms	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	1	0.75	M7	20 %
TT Electronics/BI P091N-FC20BR5K	Board Locks, PC Pins	Conductive Plastic			300 ░	0.05 W		0.236 in	6 mm	1	Flatted	Linear	5 kOhms	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	1	0.75	M7	20 %	50 mW	20 mm	0.787 in
TT Electronics/BI P091N-QC15BR10K	Board Locks, PC Pins	Conductive Plastic			300 ░	0.05 W		0.236 in	6 mm	1	Knurled and Slotted	Linear		Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	1	0.75	M7	20 %	50 mW		0.591 in	15 mm	10k
TT Electronics/BI P091N-FC25BR10K	Board Locks, PC Pins	Conductive Plastic	0.984 in	25 mm	300 ░	0.05 W		0.236 in	6 mm	1	Flatted	Linear		Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	1	0.75	M7	20 %	50 mW				10k
TT Electronics/BI P091N-FC25BR5K	Board Locks, PC Pins	Conductive Plastic	0.984 in	25 mm	300 ░	0.05 W		0.236 in	6 mm	1	Flatted	Linear	5 kOhms	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	1	0.75	M7	20 %	50 mW
TT Electronics/BI P091N-FA15BR10K	Board Locks, PC Pins	Conductive Plastic			300 ░	0.05 W		0.236 in	6 mm	1	Flatted	Linear		Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	1	0.75	M7	20 %	50 mW		0.591 in	15 mm	10k
TT Electronics/BI P091N-QC15BR100K	Board Locks, PC Pins	Conductive Plastic			300 ░	0.05 W		0.236 in	6 mm	1	Knurled and Slotted	Linear	100 kOhms	Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	1	0.75	M7	20 %	50 mW		0.591 in	15 mm
TT Electronics/BI P091N-FC15AR10K	Board Locks, PC Pins	Conductive Plastic			300 ░	0.025 W	0.025 W	0.236 in	6 mm	1	Flatted	Logarithmic		Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	1	0.75	M7	20 %			0.591 in	15 mm	10k
TT Electronics/BI P091N-FA20BR10K	Board Locks, PC Pins	Conductive Plastic			300 ░	0.05 W		0.236 in	6 mm	1	Flatted	Linear		Side Adjustment	0.374 in	0.447 in	9.5 mm	11.35 mm	1	0.75	M7	20 %	50 mW	20 mm	0.787 in		10k
