1-1827684-2
ActiveTE Connectivity AMP Connectors

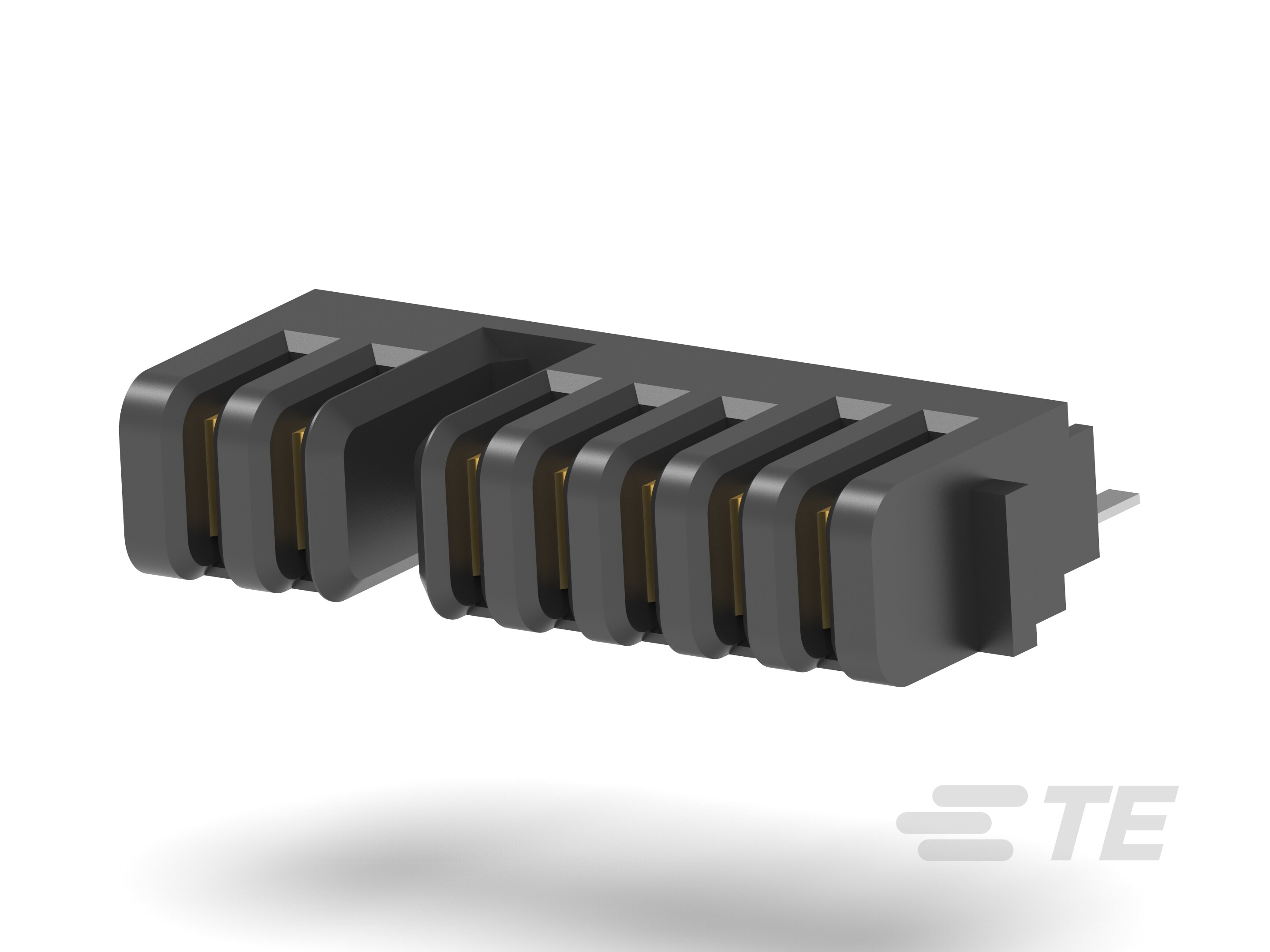

2MM PITCH BATTERY REC. ASSY. 7POS. H=4.0
1-1827684-2
ActiveTE Connectivity AMP Connectors
2MM PITCH BATTERY REC. ASSY. 7POS. H=4.0
Description
General part information
1-1827684-2
Board-to-Board, 7 Position, 2 mm [.079 in] Centerline, Receptacle, 30 VDC, Right Angle, Printed Circuit Board, Power & Signal, DC Jack Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1827684-2 |
|---|---|
| Color | Black |
| Connector Style | Battery |
| Connector Type | Receptacle, Female Blade Sockets |
| Features | Keyed, Panel Stops |
| Mounting Type | Board Edge, Surface Mount, Right Angle |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Pitch | 0.079 in |
| Termination | Solder |
