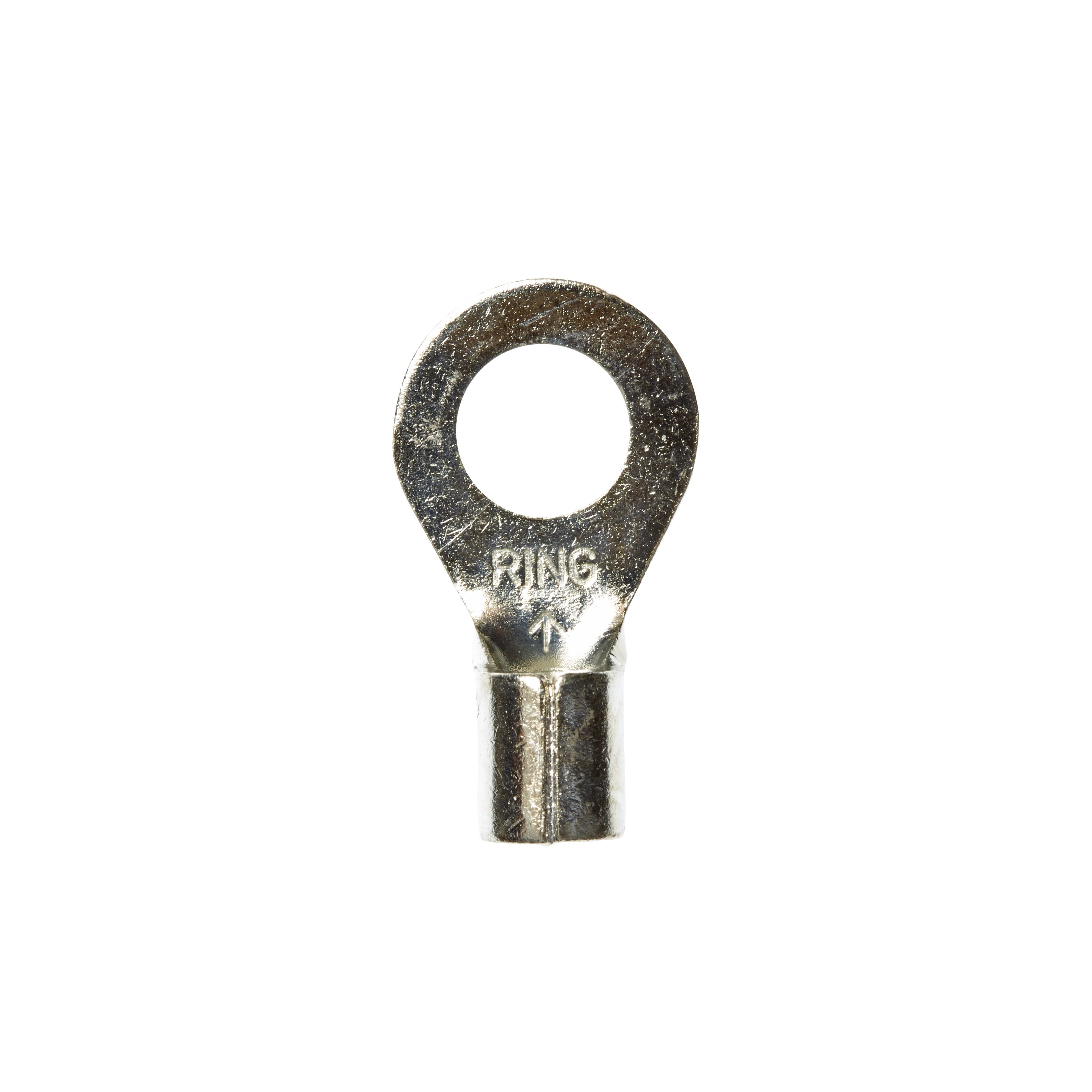

M8-516RX-BOTTLE
Active3M Electronic Specialty
CONN RING CIRC 8AWG #5/16 10PC
M8-516RX-BOTTLE
Active3M Electronic Specialty
CONN RING CIRC 8AWG #5/16 10PC
Description
General part information
M8-516RX-BOTTLE
CONN RING CIRC 8AWG #5/16 10PC
Technical Specifications
Parameters and characteristics for this part
| Specification | M8-516RX-BOTTLE |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 1.06 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.05 in |
| Width - Outer Edges | 0.59 in |
| Wire Gauge | 8 AWG |
