2005390-2
ActiveTE Connectivity AMP Connectors

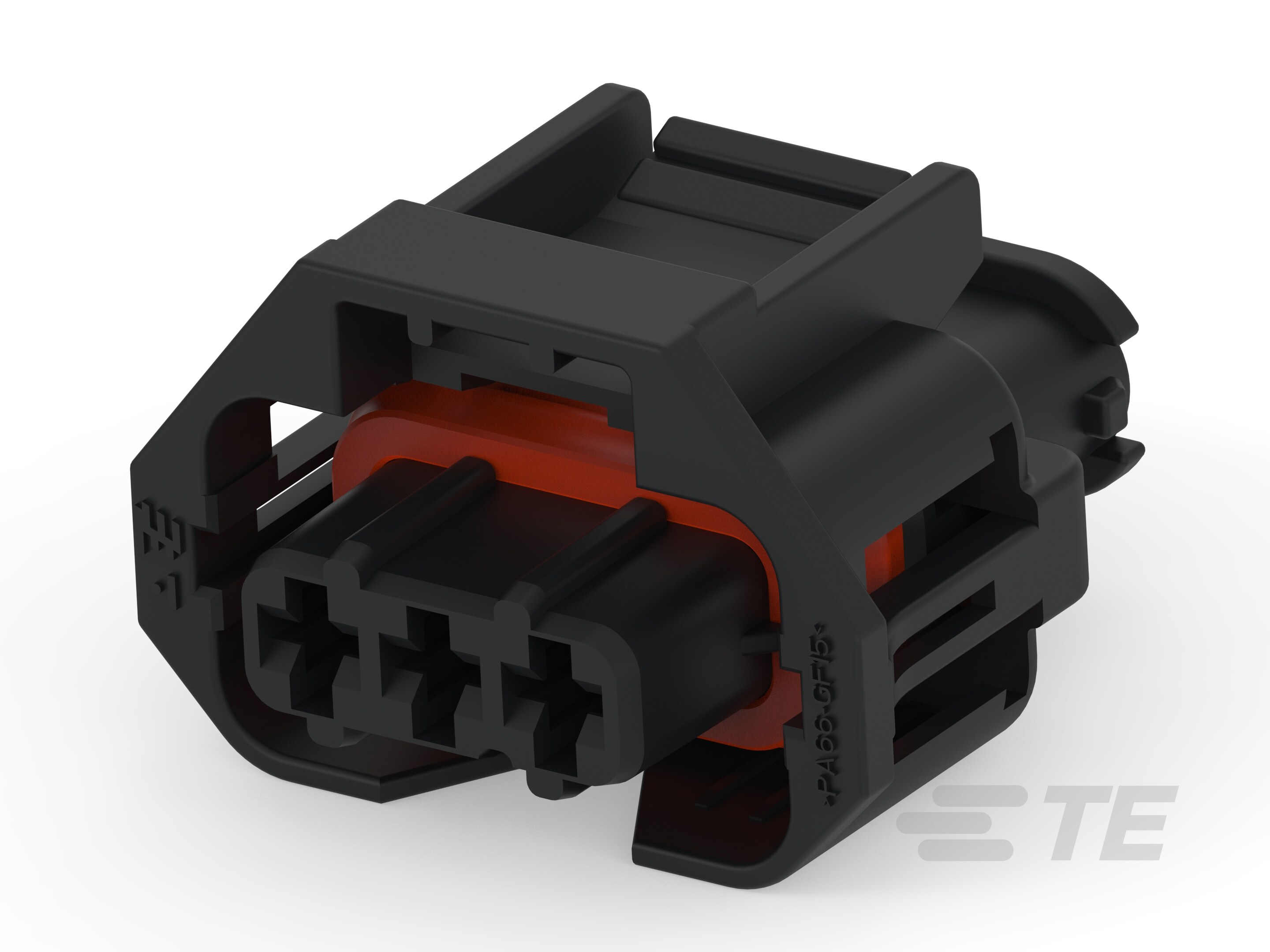

JPT SLD 3P PLUG ASSY-1 BLK
2005390-2
ActiveTE Connectivity AMP Connectors
JPT SLD 3P PLUG ASSY-1 BLK
Description
General part information
2005390-2
3 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Wire, 4.5 mm [.18 in] Centerline, Sealable, Black, Junior Power Timer
Technical Specifications
Parameters and characteristics for this part
| Specification | 2005390-2 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
