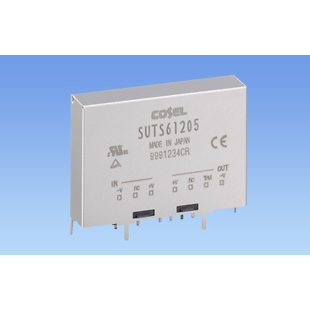

SUTS62412
ActiveCosel USA, Inc.
MODULE DC-DC 24VIN 1-OUT 12V 0.5A 6W 7-PIN
SUTS62412
ActiveCosel USA, Inc.
MODULE DC-DC 24VIN 1-OUT 12V 0.5A 6W 7-PIN
Description
General part information
SUTS62412
MODULE DC-DC 24VIN 1-OUT 12V 0.5A 6W 7-PIN
Technical Specifications
Parameters and characteristics for this part
| Specification | SUTS62412 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 500 mA |
| Efficiency | 86 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 7-SIP Module |
| Power (Watts) | 6 W |
| Size / Dimension Height | 1.04 in |
| Size / Dimension Length | 1.48 in |
| Size / Dimension Width | 0.36 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 12 V |
