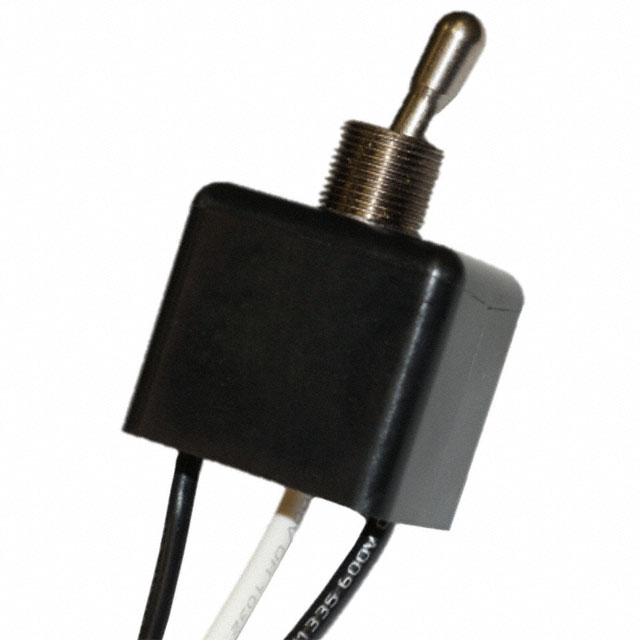

Specification	3302D

Actuator Length	14.22 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating	20 A
Electrical Life (Cycles)	100000 Cycles
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Panel Mount
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-10 °C
Switch Function	On-Off-On
Termination Style	Wire Leads
Voltage Rating - AC	125 V

- Series

Part	Actuator Material	Electrical Life (Cycles)	Illumination	Circuit	Switch Function	Actuator Length	Bushing Thread	Features	Current Rating	Mounting Type	Voltage Rating - DC	Termination Style	Actuator Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - AC	Quick Connect Size (0.250")	Ingress Protection Description	Ingress Protection IP Rating
Electroswitch T8202	Nylon Polyamide (PA)	100000 Cycles	Non-Illuminated	DPDT	On-Mom	0.5 in	Unthreaded	Red Actuator	500 mA	Right Angle Through Hole	28 V	PC Pin	Flatted	70 °C	-20 °C	125 V
Electroswitch 7102C		10000 Cycles	Non-Illuminated	SPDT	On-Off-On	14.27 mm	15/32-32		6 A	Panel Mount		Quick Connect	Standard Round	65 °C	-10 °C	125 V	0.25 in
Electroswitch 7101D		10000 Cycles	Non-Illuminated	SPDT	On-On	14.27 mm	15/32-32		6 A	Panel Mount		Solder Lug	Standard Round	65 °C	-10 °C	125 V
Electroswitch 3301C		100000 Cycles	Non-Illuminated	SPDT	On-On	14.22 mm	15/32-32		20 A	Panel Mount		Quick Connect	Standard Round	65 °C	-10 °C	125 V	0.25 in	Dust Tight Waterproof	IP67
Electroswitch 3105D		25000	Non-Illuminated	SPST	On-Off	14.22 mm	15/32-32		6 A	Panel Mount		Wire Leads	Standard Round	65 °C	-10 °C	125 V		Dust Tight Waterproof	IP67
Electroswitch 6600	Brass Nickel Plated	10000 Cycles	Non-Illuminated	SPST	On-Off	14.27 mm	15/32-32		10 A	Panel Mount		Wire Leads	Standard Round	65 °C	-10 °C	125 V
Electroswitch 7262B		10000 Cycles	Non-Illuminated	SPDT	Mom-Off-Mom	14.27 mm	15/32-32		20 A	Panel Mount		Screw Terminal	Standard Round	65 °C	-10 °C	125 V
Electroswitch 3001C		100000 Cycles	Non-Illuminated	SPDT	On-On	14.22 mm	15/32-32		15 A	Panel Mount		Quick Connect	Standard Round	65 °C	-10 °C	125 V	0.25 in	Dust Tight Waterproof	IP67
Electroswitch 3005C		100000 Cycles	Non-Illuminated	SPST	On-Off	14.22 mm	15/32-32		15 A	Panel Mount		Quick Connect	Standard Round	65 °C	-10 °C	125 V	0.25 in	Dust Tight Waterproof	IP67
Electroswitch 6601	Brass Nickel Plated	10000 Cycles	Non-Illuminated	SPST	On-Off	20.62 mm	15/32-32		10 A	Panel Mount		Wire Leads	Standard Round	65 °C	-10 °C	125 V
