Description
General part information

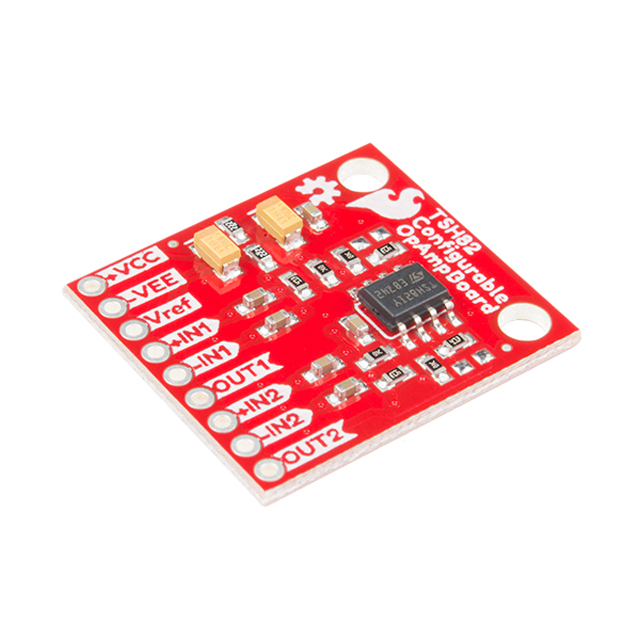

BOB-14874
TSH82 2 - Dual Channels per IC General Purpose Amplifier Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | BOB-14874 |
|---|---|
| -3db Bandwidth | 100 MHz |
| Amplifier Type | General Purpose |
| Board Type | Fully Populated |
| Channels per IC (Count) | 2 |
| Channels per IC (Dual) | 2 |
| Channels per IC (Type) | Dual |
| Current - Output / Channel | 55 mA |
| Current - Supply (Main IC) | 0.0098 mA |
| Output Type | Rail-to-Rail, Single-Ended |
| Slew Rate | 118 V/µs |
| Supplied Contents | Board(s) |
| Supply Configuration | Dual, Single |
| Utilized IC / Part | TSH82 |
| Voltage - Supply (Dual) Maximum (Magnitude) | 6 V |
| Voltage - Supply (Dual) Minimum (Magnitude) | 2.25 V |
| Voltage - Supply (Single) Maximum | 12 V |
| Voltage - Supply (Single) Minimum | 4.5 V |
