TET3600-48-104RA
ActiveBel Fuse Inc.
RACK MOUNT POWER SUPPLIES POWER SUPPLY;AC-DC/DC-DC;IN 100TO305VAC;OUT 42TO58/3.3TO12V;66/1.5A;4KW;RACK MOUNT;TBDX104X40.5MM;TBDW/IN;FAN COOLING;
TET3600-48-104RA
ActiveBel Fuse Inc.
RACK MOUNT POWER SUPPLIES POWER SUPPLY;AC-DC/DC-DC;IN 100TO305VAC;OUT 42TO58/3.3TO12V;66/1.5A;4KW;RACK MOUNT;TBDX104X40.5MM;TBDW/IN;FAN COOLING;
Description
General part information

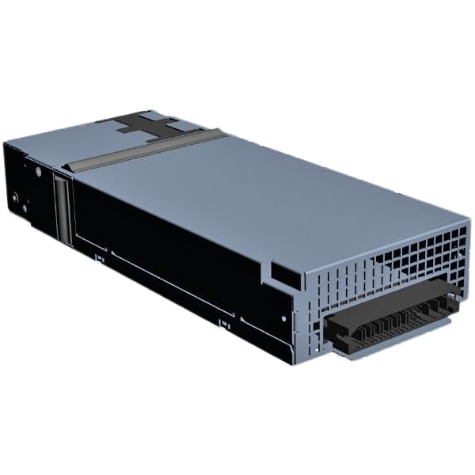

TET3600-48-104RA
Front End AC DC Converters 1 Output 48V 90 ~ 305 VAC, 192 ~ 400 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | TET3600-48-104RA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CSA |
| Current - Output 1 | 75 A |
| Efficiency | 96.6 % |
| Features | Standby Output, PFC, Load Sharing, DC Input Capable |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 45 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 3600 W |
| Size / Dimension Height | 1.57 in |
| Size / Dimension Length | 10.07 in |
| Size / Dimension Width | 4.08 in |
| Standard Number | 62368-1 |
| Type | Front End |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 400 V |
| Voltage - Input (DC) Minimum | 192 V |
| Voltage - Isolation | 5000 Vrms |
| Voltage - Output 1 | 48 V |
