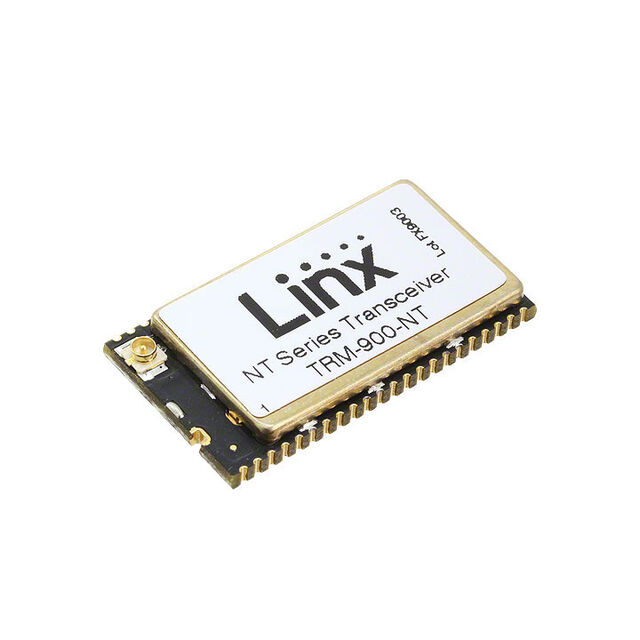

TRM-900-NT
ObsoleteTE Connectivity AMP Connectors
RF TXRX MOD ISM < 1GHZ CAST SMD
TRM-900-NT
ObsoleteTE Connectivity AMP Connectors
RF TXRX MOD ISM < 1GHZ CAST SMD
Description
General part information
TRM-900-NT
General ISM < 1GHz Transceiver Module 900MHz Castellation, U.FL/MHF Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TRM-900-NT |
|---|---|
| Antenna Type | Castellation, MHF, U.FL |
| Current - Receiving | 19 mA |
| Current - Transmitting (Max) | 36 mA |
| Current - Transmitting (Min) | 16 mA |
| Data Rate | 300 kbps |
| Frequency | 900 MHz |
| Modulation | FSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 44-SMD Module |
| Power - Output | 12.5 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -113 dBm |
| Serial Interfaces | Serial, UART |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.5 V |
