22CC37B0125B
ActiveEssentra Components
FASTENER, SCREW MOUNT CABLE CLAMP, 0.125 ", NYLON 6.6 (POLYAMIDE 6.6), BLACK, 0.375 "
22CC37B0125B
ActiveEssentra Components
FASTENER, SCREW MOUNT CABLE CLAMP, 0.125 ", NYLON 6.6 (POLYAMIDE 6.6), BLACK, 0.375 "
Description
General part information
22CC37B0125B

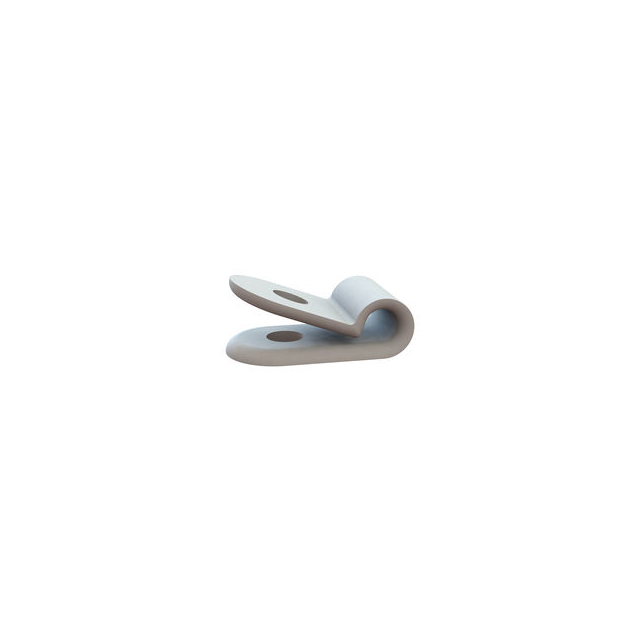

P style screw mount nylon cable clamp used for securing cable bundles. This screw down plastic P-clip that is easy to install and ideal for holding cables, tubes or pipes.
Technical Specifications
Parameters and characteristics for this part
| Specification | 22CC37B0125B |
|---|---|
| Bundle Center to Mounting Center | 0.329 in |
| Color | Black |
| Material | Nylon 6, 6, Polyamide (PA66) |
| Material Flammability Rating | UL94 V-2 |
| Material Thickness | 0.03 in |
| Mounting Type | Fastener |
| Opening Size | 0.125 in |
| Panel Hole Size | 0.14 in |
| Type | P-Type, Clamp |
| Width | 0.375 in |
