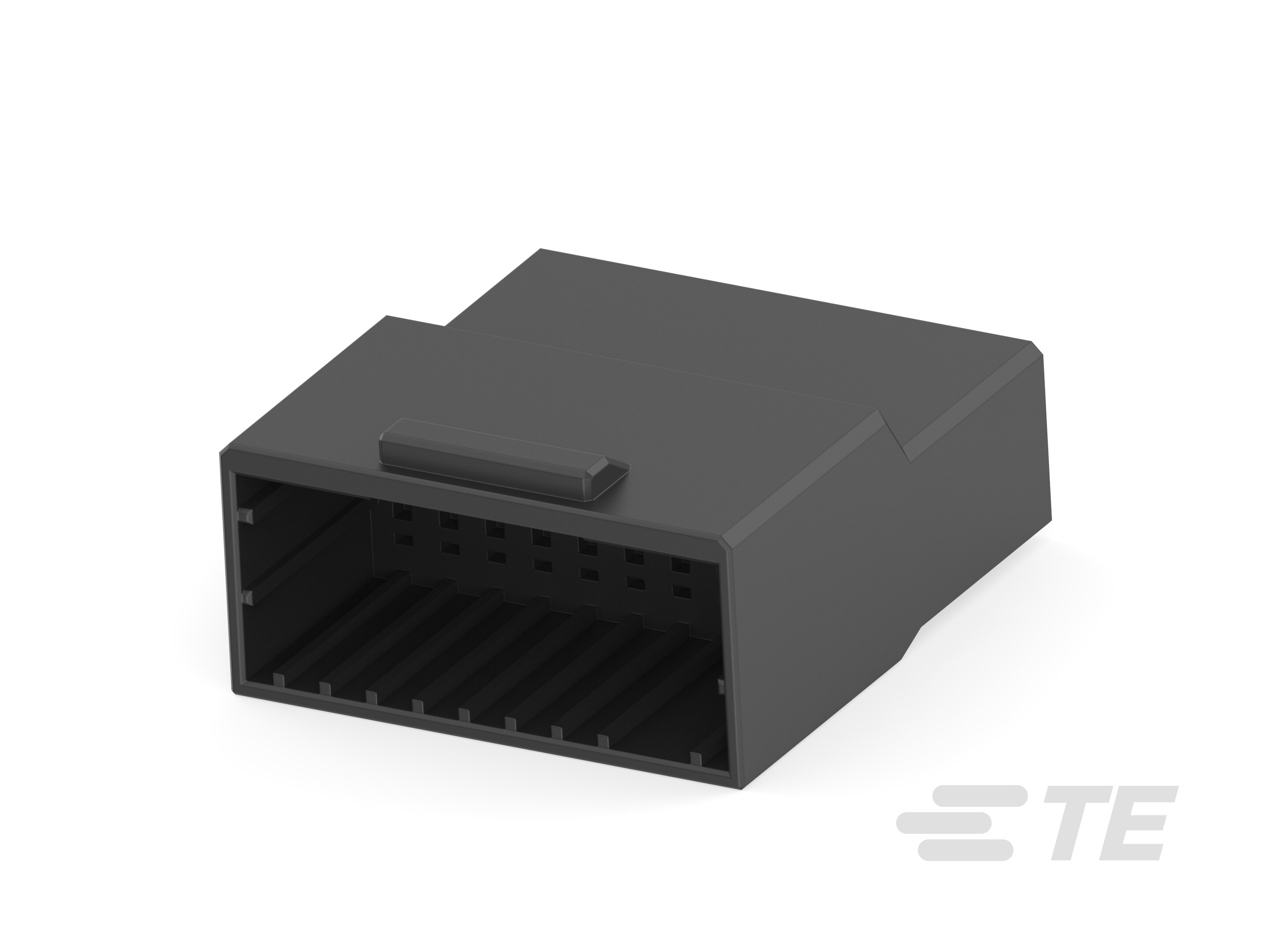

Specification	2-1318115-9

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Polarizing Key
Insulation Material	Polyester, Thermoplastic, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.098 in

Dynamic 2000 Series Series

...

Part	Number of Positions Loaded	Insulation Material	Contact Material	Insulation Color	Number of Rows	Number of Positions	Pitch - Mating	Contact Finish - Mating	Contact Type	Voltage Rating	Insulation Height	Shrouding	Contact Shape	Mounting Type	Contact Finish - Post	Style	Termination	Current Rating	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness - Mating	Fastening Type	Connector Type	Contact Length - Post	Features	Applications	Color	Pitch	Contact Termination	Voltage Rating (Type)	For Use With/Related Products	Tool Type	Note	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Pin or Socket	Contact Finish Thickness	Contact Finish	Row Spacing	Row Spacing - Mating
TE Connectivity AMP Connectors 1376135-2	All	Glass Filled Polyester Thermoplastic	Copper Alloy	Black	1	3	0.098 in	Gold	Tab	250 V	0.431 in	Shrouded - 4 Wall	Rectangular	Right Angle Through Hole	Tin	Board Board or Cable	Solder	5 A	UL94 V-0	-55 °C	105 °C	15 µin	Detent Lock	Header	0.131 in	Board Lock	General Purpose Industrial
TE Connectivity AMP Connectors 1-1318114-3		Glass Filled Polyester Thermoplastic			2	6			Male Pin					Panel Mount Snap-In						-55 °C	105 °C			Plug		Polarizing Key		Black	0.098 in	Crimp
TE Connectivity AMP Connectors 2-2336491-3	All	Liquid Crystal Polymer (LCP)	Copper Alloy	Black	1	3	0.197 in	Gold	Male Pin	300 VAC/DC	0.386 in	Shrouded - 4 Wall	Rectangular	Right Angle Through Hole	Tin	Board Cable/Wire	Solder	18 A	UL94 V-0	-55 °C	105 °C	15 µin	Push-Pull	Header	0.102 in	Solder Retention					DC
TE Connectivity AMP Connectors 1276716-1																																Terminals	Extraction Tool
TE Connectivity AMP Connectors 1-1318114-6		Glass Filled Polyester Thermoplastic			2	12			Male Pin					Panel Mount Snap-In						-55 °C	105 °C			Plug		Polarizing Key		Black	0.098 in	Crimp				Contacts Not Included
TE Connectivity AMP Connectors 1318106-1																														Crimp					28 AWG	24 AWG	Socket	15 µin	Gold
TE Connectivity AMP Connectors 1318577-1		Glass Filled Polyester			2	50			Female Socket					Panel Mount						-55 °C	105 °C			Receptacle				Black	0.098 in	Crimp										0.148 in
TE Connectivity AMP Connectors 2-1717834-4		Glass Filled Polyester			2	8			Female Socket					Free Hanging (In-Line)						-55 °C	105 °C		Locking Ramp	Receptacle				Black	0.098 in	Crimp				Contacts Not Included						0.148 in
TE Connectivity AMP Connectors 9-1318125-2	All	Glass Filled Polyester	Copper Alloy	Black	2	8	0.098 in	Gold	Tab	250 V	0.7 in	Shrouded - 4 Wall	Rectangular	Through Hole		Board Board or Cable	Solder	5 A	UL94 V-0	-55 °C	105 °C	15 µin	Latch Lock	Header	0.134 in																0.148 in
TE Connectivity AMP Connectors 1-1318125-2	All	Glass Filled Polyester Thermoplastic	Copper Alloy	Black	2	8	0.098 in	Gold	Tab	250 V	0.7 in	Shrouded - 4 Wall	Rectangular	Through Hole	Tin	Board Board or Cable	Solder	5 A	UL94 V-0	-55 °C	105 °C	15 µin	Detent Lock	Header	0.134 in	Board Lock															0.148 in
