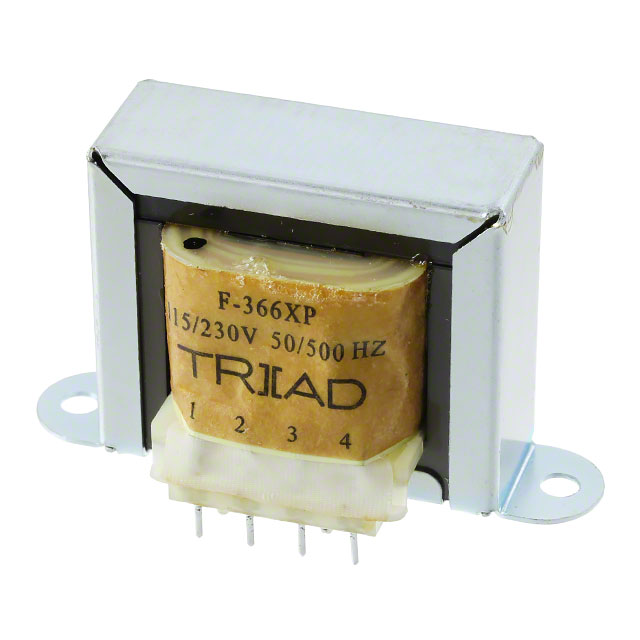

F-366XP
ActiveTriad Magnetics
PWR XFMR LAMINATED 10VA CHAS MT
F-366XP
ActiveTriad Magnetics
PWR XFMR LAMINATED 10VA CHAS MT
Description
General part information
F-366XP
PWR XFMR LAMINATED 10VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | F-366XP |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 1.28 A |
| Current - Output (Max) Series | 640 mA |
| Height - Seated (Max) | 41.28 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 10 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 71.42 mm |
| Size / Dimension Width | 36.5 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 8 V |
| Voltage - Secondary (Full Load) (Series) | 16 V |
| Weight | 0.688 lb |
