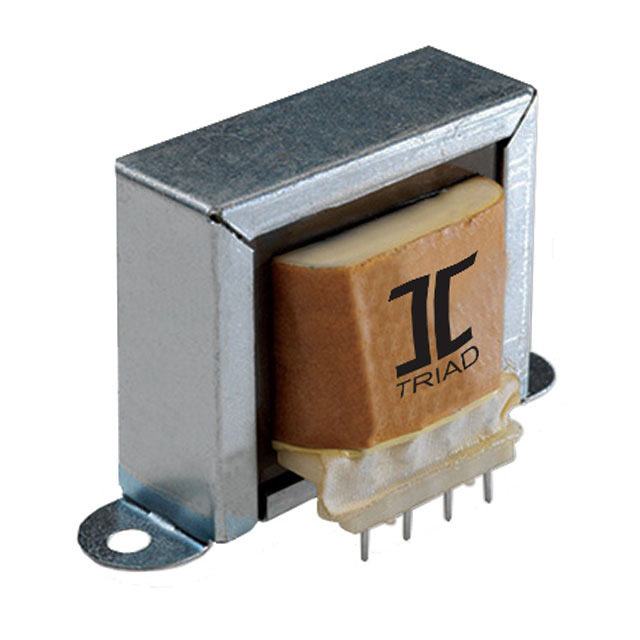

F-363XP
ActiveTriad Magnetics
PWR XFMR LAMINATED 4.5VA TH
F-363XP
ActiveTriad Magnetics
PWR XFMR LAMINATED 4.5VA TH
Description
General part information
F-363XP
PWR XFMR LAMINATED 4.5VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | F-363XP |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 40 mA |
| Current - Output (Max) Series | 20 mA |
| Height - Seated (Max) | 36.5 mm |
| Mounting Type | Through Hole |
| Power - Max | 4.5 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 60.33 mm |
| Size / Dimension Width | 1.25 in |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 115 V |
| Voltage - Secondary (Full Load) (Series) | 230 V |
| Weight | 0.407 lb |
