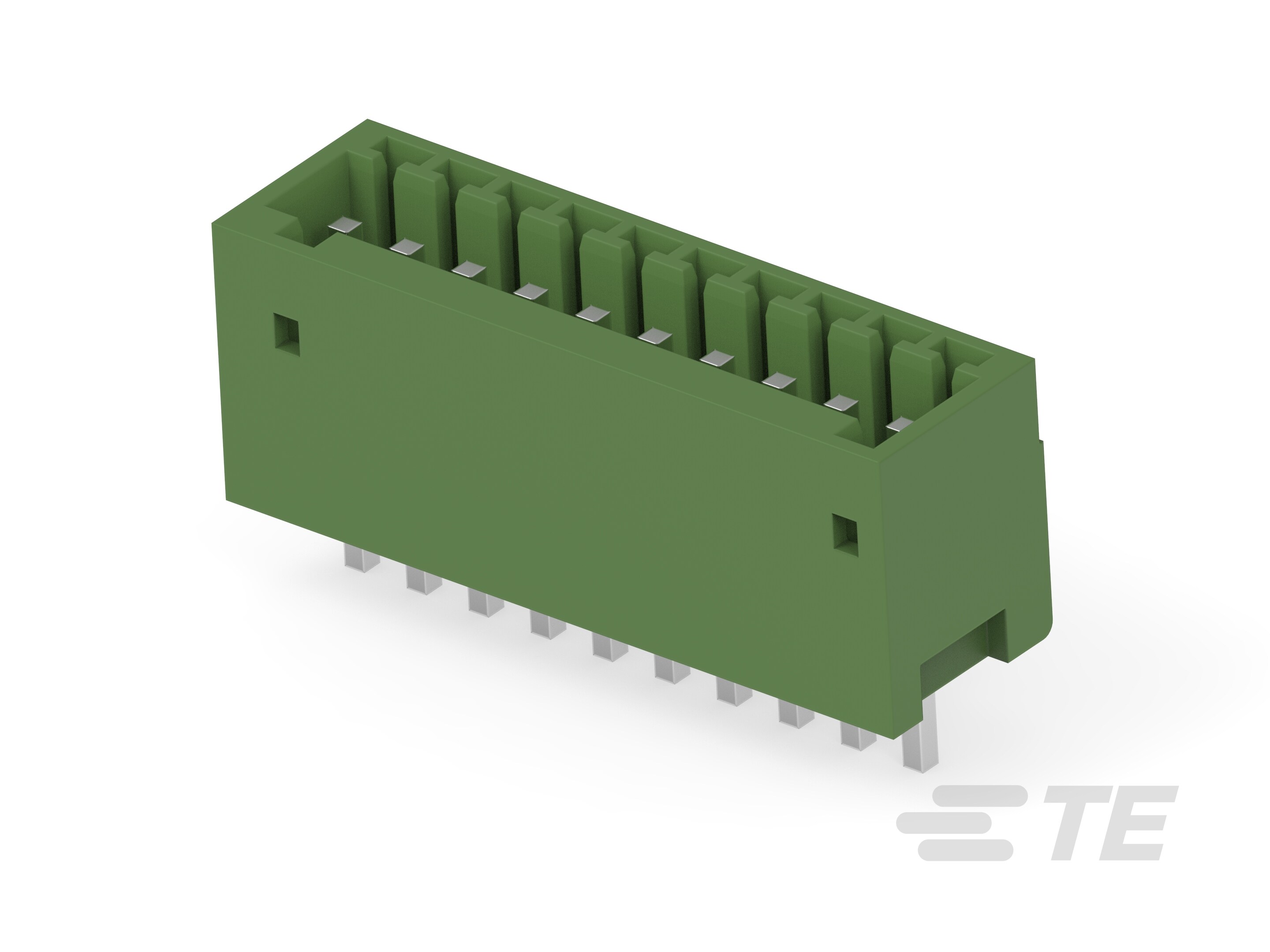

10P TB HDR 180 DEG,PITCH 2.5 &TL 3.5mm-1-2385003-0

1-2385003-0

Active
TE Connectivity AMP Connectors

10P TB HDR 180 DEG,PITCH 2.5 &TL 3.5MM

Find alt
10P TB HDR 180 DEG,PITCH 2.5 &TL 3.5mm-1-2385003-0

1-2385003-0

Active
TE Connectivity AMP Connectors

10P TB HDR 180 DEG,PITCH 2.5 &TL 3.5MM

Find alt

Description

General part information

1-2385003-0

10 Position PCB Terminal Block, Header, Wire-to-Board, 2.5 mm [.098 in] Centerline, 1 Row, 150 VAC, Printed Circuit Board, Vertical

Technical Specifications

Parameters and characteristics for this part

Specification1-2385003-0
ColorGreen
Contact Mating FinishTin
Current - UL4 A
Header OrientationVertical
Mounting TypeThrough Hole
Number of Levels1
Number of Positions10
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch0.098 in
Positions Per Level10
Termination StyleSolder
TypeShrouded (4 Side), Male Pins, Header
Voltage - UL150 V
