530L104KT16T
ActiveKYOCERA AVX
CAP CER 0.1UF 16V X7R 0402
530L104KT16T
ActiveKYOCERA AVX
CAP CER 0.1UF 16V X7R 0402
Description
General part information
530L104KT16T

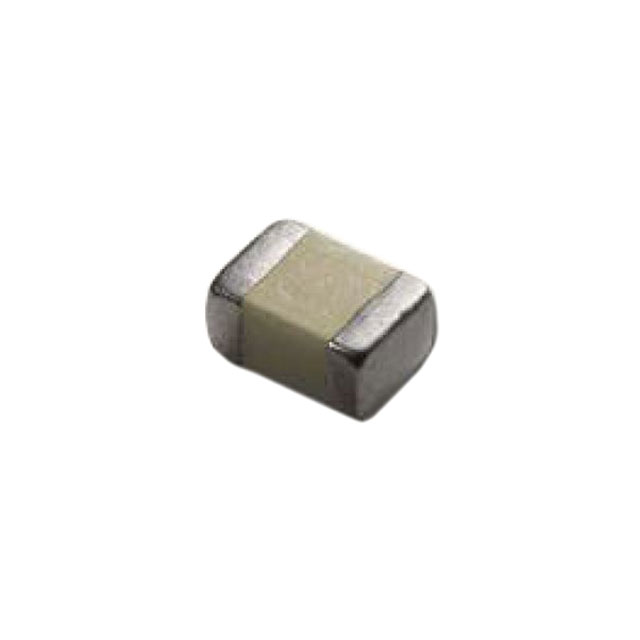

0.1 µF ±10% 16V Ceramic Capacitor X7R 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 530L104KT16T |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 0.1 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.04 in |
| Size / Dimension Width | 0.02 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.024 in |
| Tolerance | 10 % |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
