4DB-R107-07
ObsoleteTE Connectivity AMP Connectors
CONN BARRIER STRIP 7CIRC 0.325"
4DB-R107-07
ObsoleteTE Connectivity AMP Connectors
CONN BARRIER STRIP 7CIRC 0.325"
Description
General part information
4DB-R107-07

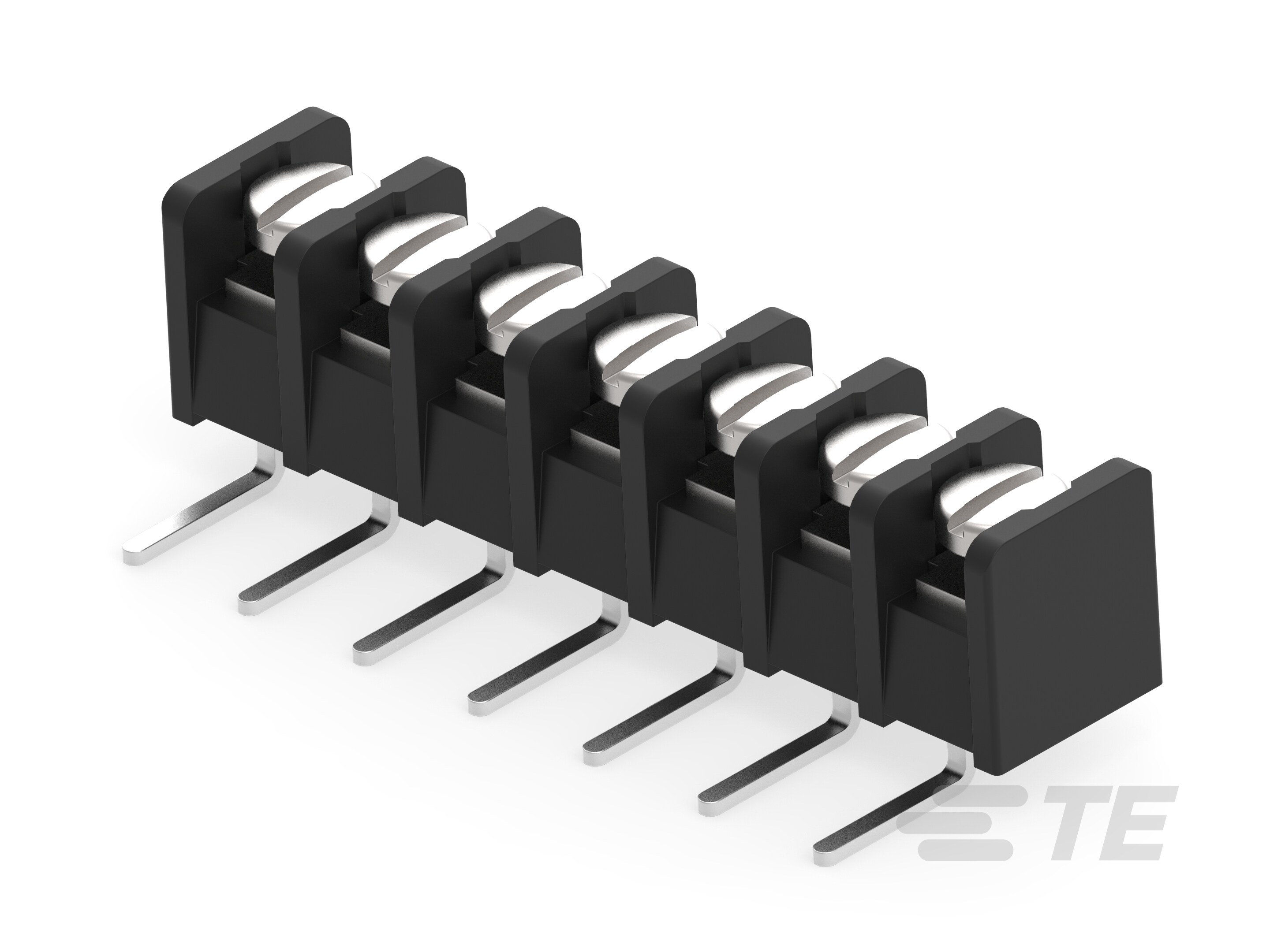

7 Position Barrier Strip, Dual Barrier, Printed Circuit Pin Bottom Termination, Wire-to-Board, 8.26 mm [.325 in] Centerline, 1 Row, 150 V / 300 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 4DB-R107-07 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating | 20 A |
| Number of Circuits | 7 |
| Number of Rows | 1 |
| Number of Wire Entries | 7 |
| Pitch | 0.325 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 150 VDC |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
