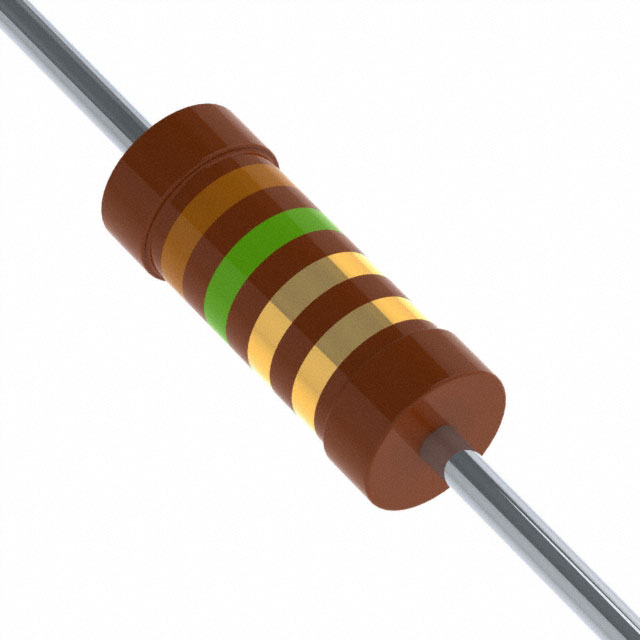

1,5 Ohm CBT Neohm 5% Axial Bn

CBT25J1R5

Obsolete
TE Connectivity AMP Connectors

THROUGH HOLE CARBON COMPOSITION RESISTOR, CBT SERIES, 1.5 OHM, 250 MW, - 5%, 250 V

Find alt
1,5 Ohm CBT Neohm 5% Axial Bn

CBT25J1R5

Obsolete
TE Connectivity AMP Connectors

THROUGH HOLE CARBON COMPOSITION RESISTOR, CBT SERIES, 1.5 OHM, 250 MW, - 5%, 250 V

Find alt

Description

General part information

CBT25J1R5

1.5 Ohms ±5% 0.25W, 1/4W Through Hole Resistor Axial Pulse Withstanding Carbon Composition

Technical Specifications

Parameters and characteristics for this part

SpecificationCBT25J1R5
CompositionCarbon Composition
FeaturesPulse Withstanding
Number of Terminations2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Package / CaseAxial
Package NameAxial
Power (Watts)250 mW
Power (Watts) Options1/4W
Resistance1.5 Ohm
Size / Dimension Diameter0.094 in
Size / Dimension Length0.248 in
Temperature Coefficient (Highest)400 ppm/°C
Temperature Coefficient (Lowest)-700 ppm/°C
Temperature Coefficient (Negative)-700 ppm/°C
Temperature Coefficient (Positive)400 ppm/°C
Tolerance5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
