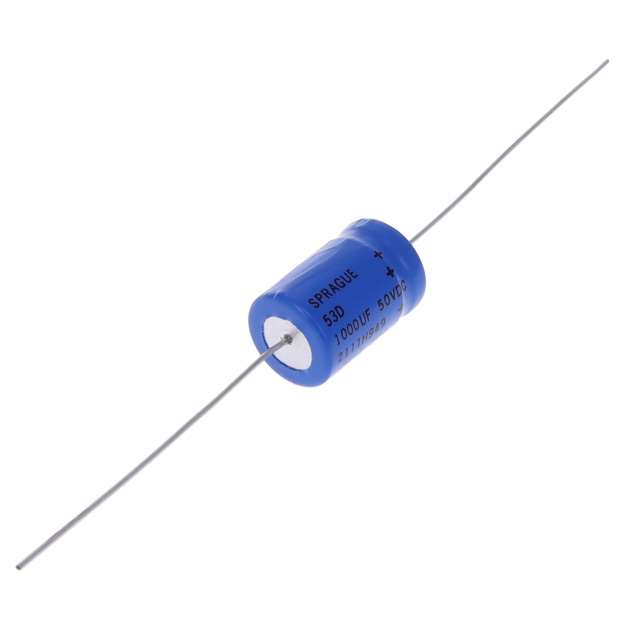

53D102G050GE6
ActiveVishay Dale
ELECTROLYTIC CAPACITOR, TUBULAR, 1000 ΜF, 50 V, ± 10%, PC PIN, 1000 HOURS @ 105°C, POLAR
53D102G050GE6
ActiveVishay Dale
ELECTROLYTIC CAPACITOR, TUBULAR, 1000 ΜF, 50 V, ± 10%, PC PIN, 1000 HOURS @ 105°C, POLAR
Description
General part information
53D102G050GE6
1000 µF 50 V Aluminum Electrolytic Capacitors Axial, Can 231mOhm @ 120Hz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 53D102G050GE6 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| ESR (Equivalent Series Resistance) | 231 mOhm |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 1.093 A, 950 mA |
| Size / Dimension Diameter | 0.76 in |
| Size / Dimension Length | 1.142 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 50 V |
