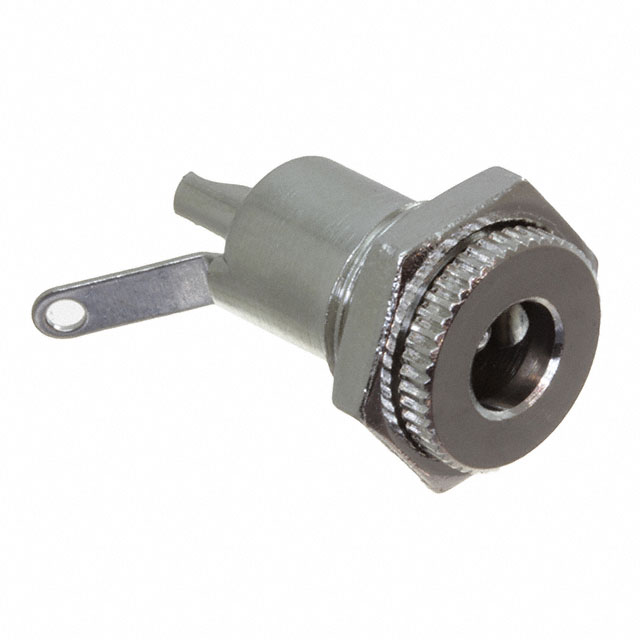

712AFMS

Active

Switchcraft Inc.

DC POWER JACK, SHIELDED, FRONT P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

712AFMS

Active

Switchcraft Inc.

DC POWER JACK, SHIELDED, FRONT P

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	712AFMS	712A Series

Actual Diameter	-	2.5 mm
Actual Diameter	-	0.098 in
Actual Diameter [custom]	2.5 mm	2.5 mm
Actual Diameter [custom]	0.098 "	0.098 "
Actual Diameter [custom]	0.217 "	0.217 "
Actual Diameter [custom]	5.5 mm	5.5 mm
Body Color	Silver	Silver, Black
Body Material	Brass	Brass, Copper Alloy
Connector Type	Jack	Jack
Contact Material	Brass	Brass, Copper Alloy
Contact Material - Plating	-	Tin
Contact Material - Plating [custom]	Nickel	Nickel
Current Rating (Amps)	5 A	5 A
Features	-	Strain Relief
Gender	Male	Male
Housing Material	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS), Thermoplastic
Includes	Mounting Hardware	Mounting Hardware, Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "	0.098 - 0.217 "
Insulation Color	Silver	Silver, Black
Internal Switch(s)	False	False
Internal Switch(s)	-	Single Switch
Mating Length/Depth	0.374 in	0.374 in
Mating Length/Depth	9.5 mm	9.5 mm
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Free Hanging (In-Line)
Number of Positions/Contacts	-	2 - 3 Conductors
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Operating Temperature [Max]	65 °C	65 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shielding	Shielded	Shielded, Unshielded
Termination	Solder Cup, Solder Eyelet	Solder Cup, Solder Eyelet, Through Hole, Solder Eyelet(s)
Thread Size	M11x1	M11x1, 5/16"-32
Voltage - Rated	48 V	24 - 48 V

712A Series

DC POWER JACK, SHIELDED, FRONT P

Part	Insulation Color	Mounting Feature	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Mating Length/Depth	Mating Length/Depth	Shielding	Body Material	Housing Material	Termination	Voltage - Rated	Thread Size	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Plating [custom]	Gender	Current Rating (Amps)	Includes	Body Color	Connector Type	Contact Material	Mounting Type	Internal Switch(s)	Number of Positions/Contacts	Contact Material - Plating	Actual Diameter [diameter]	Actual Diameter [diameter]	Features
Switchcraft Inc. 712AFMS	Silver	Bulkhead - Rear Side Nut	2	2	2.5 mm	0.098 "	0.217 "	5.5 mm	0.374 in	9.5 mm	Shielded	Brass	Acrylonitrile Butadiene Styrene (ABS)	Solder Cup, Solder Eyelet	48 V	M11x1	2.5 mm, 5.5 mm	0.098 ", 0.217 "	65 °C	-40 °C	Nickel	Male	5 A	Mounting Hardware	Silver	Jack	Brass
Switchcraft Inc. 712AH											Unshielded	Copper Alloy	Thermoplastic	Through Hole	48 V	5/16"-32	2.5 mm ID	0.098 "			Nickel	Male		Connector, Nut, Washer	Black, Silver	Jack	Copper Alloy	Through Hole	Single Switch	2 Conductors, 3 Conductors
Switchcraft Inc. 712ACF	Black										Unshielded	Copper Alloy	Thermoplastic	Solder Eyelet(s)	24 VDC		2.5 mm ID	0.098 "	105 ░C	-40 °C		Male	5 A		Black, Silver	Jack	Copper Alloy	Free Hanging (In-Line)		2 Conductors, 3 Conductors	Tin	2.5 mm	0.098 in	Strain Relief
Switchcraft Inc. 712AC	Black										Unshielded	Copper Alloy	Thermoplastic	Solder Eyelet(s)	24 VDC		2.5 mm ID	0.098 "	105 ░C	-40 °C		Male	5 A		Black, Silver	Jack	Copper Alloy	Free Hanging (In-Line)		2 Conductors, 3 Conductors	Tin	2.5 mm	0.098 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.96
		10	$ 4.50
		25	$ 4.27
		50	$ 4.17
		100	$ 3.97
		250	$ 3.47
		500	$ 3.37
		1000	$ 3.06

Description

General part information

712A Series

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount
