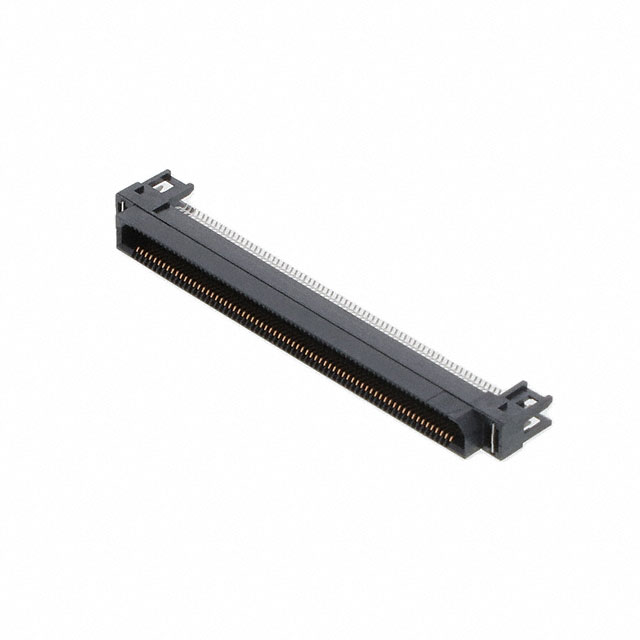

ERF8-070-01-L-D-EM2-TR

Active

Samtec Inc.

0.8MM 2 140P P=0.8MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

ERF8-070-01-L-D-EM2-TR

Active

Samtec Inc.

0.8MM 2 140P P=0.8MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-070-01-L-D-EM2-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mounting Type	Board Edge, Straddle Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-070 Series

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Connector Type	Height Above Board	Height Above Board
Samtec Inc. ERF8-070-07.0-S-DV-EGP-TR	Board Guide	0.76 Ám	30 Áin	140	2	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	Surface Mount	0.285 in	7.24 mm	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-070-03-S-D-RA-TR	Board Guide Mounting Flange	0.76 Ám	30 Áin	140	2	0.8 mm	0.031 in		Surface Mount Right Angle			Gold	Outer Shroud Contacts Socket	6.25 mm	0.246 in
Samtec Inc. ERF8-070-01-L-D-RA-EGP-TR	Board Guide Mounting Flange	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in		Surface Mount Right Angle			Gold	Outer Shroud Contacts Socket	6.25 mm	0.246 in
Samtec Inc. ERF8-070-05.0-L-DV-K-TR	Board Guide Pick and Place	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm	Surface Mount			Gold	Outer Shroud Contacts Socket	5.33 mm	0.21 in
Samtec Inc. ERF8-070-05.0-S-DV-L-K-TR	Board Guide Latches Pick and Place	0.76 Ám	30 Áin	140	2	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm	Surface Mount			Gold	Outer Shroud Contacts Socket	5.33 mm	0.21 in
Samtec Inc. ERF8-070-07.0-L-DV-EGP-K-TR	Board Guide Pick and Place	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	Surface Mount	0.285 in	7.24 mm	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-070-03-L-D-RA-TR	Board Guide Mounting Flange	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in		Surface Mount Right Angle			Gold	Outer Shroud Contacts Socket	6.25 mm	0.246 in
Samtec Inc. ERF8-070-01-L-D-EM2-TR		0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in		Board Edge Straddle Mount			Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-070-07.0-S-DV-K-TR	Board Guide Pick and Place	0.76 Ám	30 Áin	140	2	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	Surface Mount	0.285 in	7.24 mm	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-070-05.0-L-DV-L-K-TR	Board Guide Latches Pick and Place	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm	Surface Mount			Gold	Outer Shroud Contacts Socket	5.33 mm	0.21 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.14
		10	$ 10.09
		25	$ 9.12
		50	$ 8.47
	Digi-Reel®	1	$ 13.14
		10	$ 10.09
		25	$ 9.12
		50	$ 8.47
	Tape & Reel (TR)	150	$ 6.06
LCSC	Piece	1	$ 17.24
		150	$ 6.88
		450	$ 6.65
		1050	$ 6.54

Description

General part information

ERF8-070 Series

140 Position Connector Socket, Outer Shroud Contacts Board Edge, Straddle Mount Gold
