SF126E/11PC35/11PC35/610MM
ActiveHuber+Suhner, Inc.

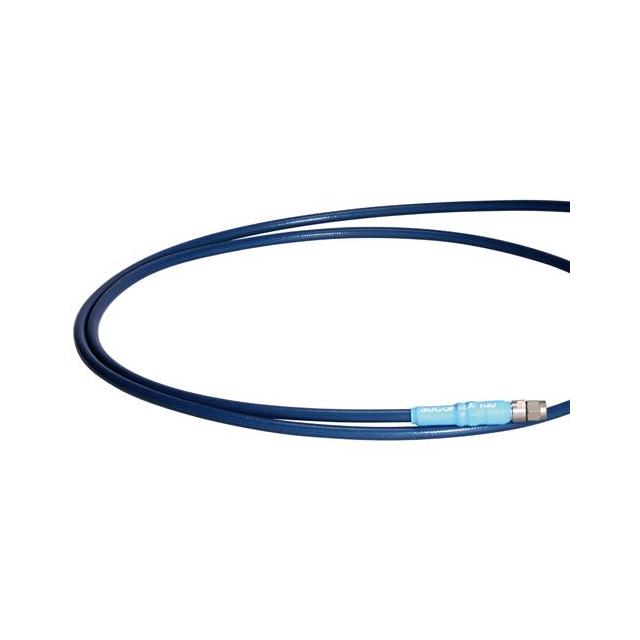

RF CABLE, 3.5MM PLUG-3.5MM PLUG, 24" ROHS COMPLIANT: YES
SF126E/11PC35/11PC35/610MM
ActiveHuber+Suhner, Inc.
RF CABLE, 3.5MM PLUG-3.5MM PLUG, 24" ROHS COMPLIANT: YES
Description
General part information
SF126E/11PC35/11PC35/610MM
Cable Assembly Coaxial 3.5mm to 3.5mm 5.50mm OD Coaxial Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | SF126E/11PC35/11PC35/610MM |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 3.5 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 3.5 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 5.5 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 5.5 mm |
| Color | Blue |
| Frequency - Max | 26.5 GHz |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | 3.5mm to 3.5mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
