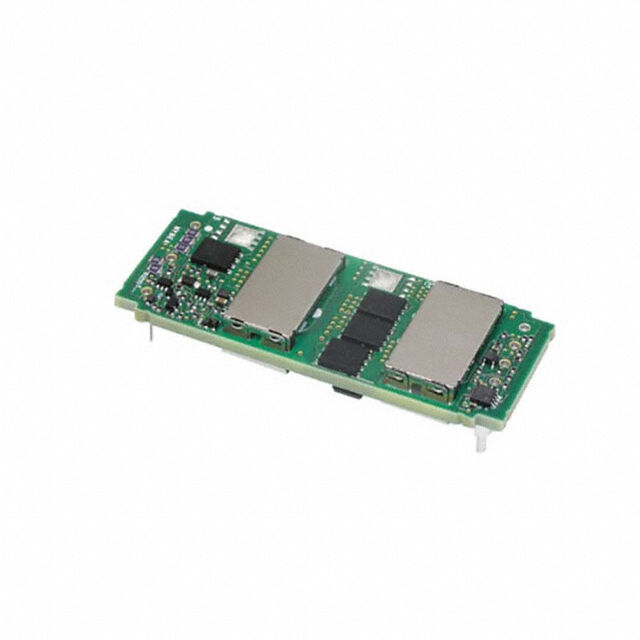

MYBSC0128CABT

Active

Murata Power Solutions Inc.

MODULE DC-DC 48VIN 1-OUT 12V 8.3A 100W 8-PIN 1/16-BRICK T/R

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

MODULE DC-DC 48VIN 1-OUT 12V 8.3A 100W 8-PIN 1/16-BRICK T/R

Technical Specifications

Parameters and characteristics for this part

MODULE DC-DC 48VIN 1-OUT 12V 8.3A 100W 8-PIN 1/16-BRICK T/R

Part	Number of Outputs	Efficiency	Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output 1	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Applications
Murata Power Solutions Inc. MYBSC0128CABT	1	92.5 %	Isolated Module	1.5 kV	0.41 "	23.2 mm	33 mm	10.4 mm	1.3 "	0.91 in	Through Hole	Sixteenth Brick	36 V	8.3 A	100 W	12 V	60 V	85 °C	-40 °C	Sixteenth Brick	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 8.3A 36V - 60V Input

Technical documentation and resources

No documents available
