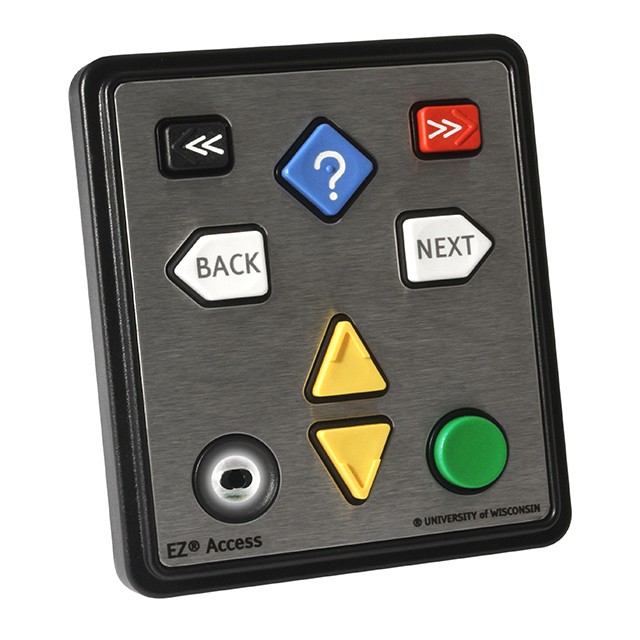

EZ08-23001
ActiveSTORM INTERFACE
KEYPAD, NAV-PAD SERIES, USB, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZ08-23001
ActiveSTORM INTERFACE
KEYPAD, NAV-PAD SERIES, USB, 5 V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ08-23001 |
|---|---|
| Approval Agency | FCC, CE, UL |
| Features | Audio Enabled |
| Illumination | Non-Illuminated |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Key Color | Multiple |
| Key Type | Polymer |
| Legend | Arrows, Help Button |
| Legend Color | White, Black |
| Legend Type | Fixed |
| Mounting Type | Panel Mount, Front or Rear |
| Number of Keys [custom] | 8 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | USB |
| Panel Cutout Dimensions [x] | 109.5 mm |
| Panel Cutout Dimensions [y] | 95.5 mm |
| Switch Type | Conductive Rubber |
| Termination Style | USB Socket |
EZ08 Series
| Part | Number of Keys [custom] | Ingress Protection | Key Type | Mounting Type | Illumination | Output Type | Key Color | Termination Style | Legend Color | Operating Temperature [Min] | Operating Temperature [Max] | Switch Type | Approval Agency | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features | Legend Type | Legend | Output Type | Operational Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STORM INTERFACE | 8 | IP65 - Dust Tight Water Resistant | Polymer | Panel Mount Front or Rear | Non-Illuminated | USB | Multiple | USB Socket | Black White | -20 C | 60 °C | Conductive Rubber | CE FCC UL | 109.5 mm | 95.5 mm | Audio Enabled | Fixed | Arrows Help Button | ||
STORM INTERFACE | 8 | IP65 - Dust Tight Water Resistant | Polymer | Panel Mount Front or Rear | Non-Illuminated | Multiple | Pin Header | Black White | -20 C | 60 °C | Conductive Rubber | CE cURus | 109.5 mm | 95.5 mm | Anti-Vandal | Fixed | Arrows Help Button | 1.81 mOhm | 4000000 Cycles | |
STORM INTERFACE | 8 | IP65 - Dust Tight Water Resistant | Polymer | Panel Mount Front or Rear | Non-Illuminated | USB | Multiple | Pin Header | Black White | -20 C | 60 °C | Conductive Rubber | CE cURus | 109.5 mm | 95.5 mm | Anti-Vandal | Fixed | Arrows Help Button | 4000000 Cycles |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EZ08 Series
Keypad Switch 8 Polymer Keys Conductive Rubber Contacts USB Output Non-Illuminated
