1034421
ObsoletePhoenix Contact
PCB TERMINAL BLOCK, NOMINAL CURR
1034421
ObsoletePhoenix Contact
PCB TERMINAL BLOCK, NOMINAL CURR
Description
General part information
1034421

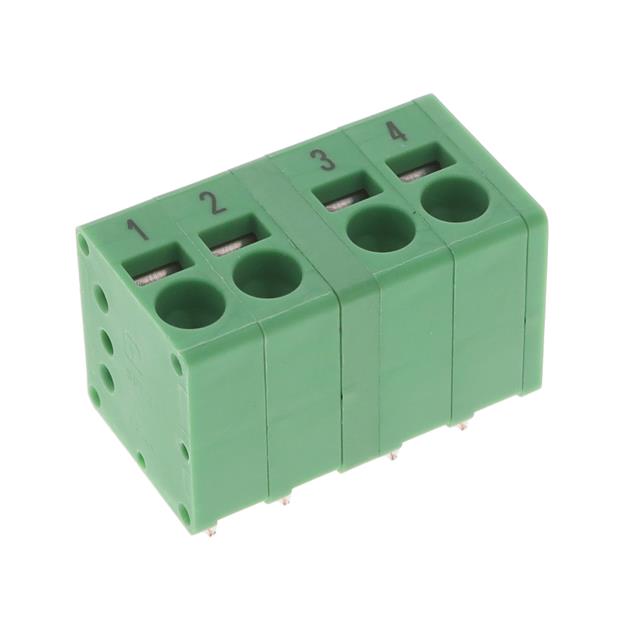

4 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1034421 |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Current | 20 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Plating | Tin Plated |
| Positions Per Level | 4 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
