Description
General part information

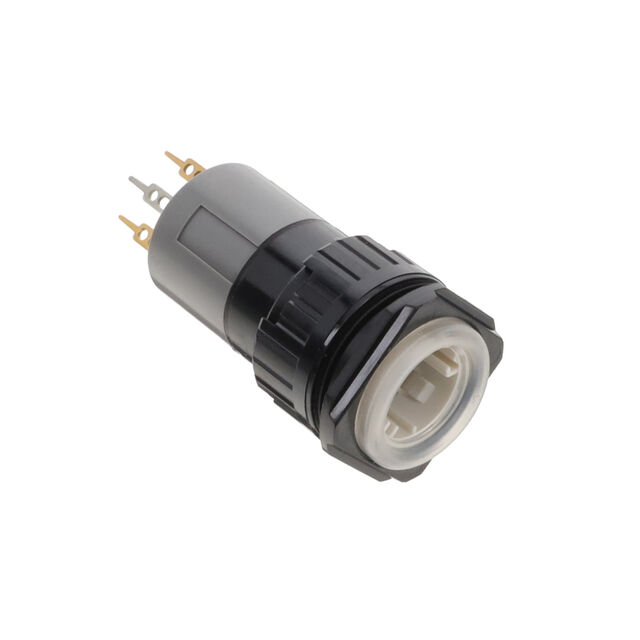

51-486.036F
Pushbutton Switch SPST-NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-486.036F |
|---|---|
| Actuator Type | Button (Not Included), Square |
| Circuit | SPST-NC |
| Current Rating | 100 mA |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Length | 21.2 mm |
| Panel Cutout Shape | Square |
| Panel Cutout Width | 21.2 mm |
| Switch Function | On-Off |
| Termination Style | Solder Lug, PC Pin |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
