Description
General part information
PU4

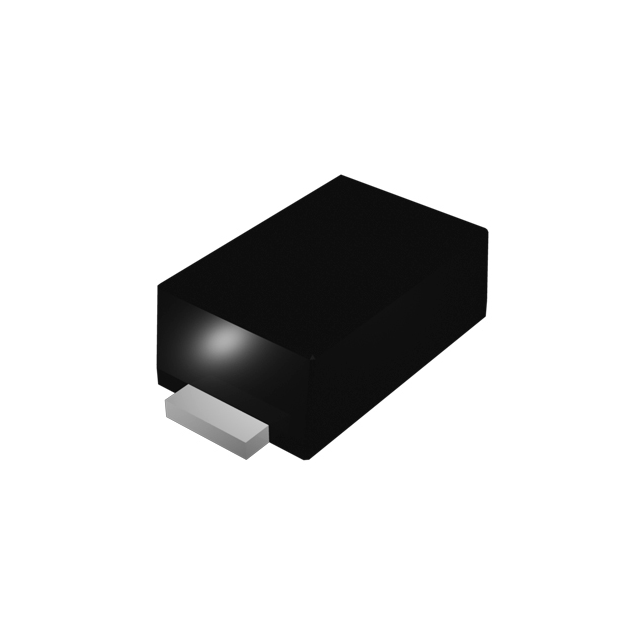

Diode 400 V 1A Surface Mount SOD-123HS
Technical Specifications
Parameters and characteristics for this part
| Specification | PU4 |
|---|---|
| Capacitance | 7 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | SOD-123H |
| Package Name | SOD-123HS |
| Reverse Recovery Time (trr) | 35 ns |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) | 1.3 V |
