TAD2413A201-020
ActiveTE Connectivity AMP Connectors
SENSOR CORD, 4P M12 PLUG-FREE END, 2M ROHS COMPLIANT: YES
TAD2413A201-020
ActiveTE Connectivity AMP Connectors
SENSOR CORD, 4P M12 PLUG-FREE END, 2M ROHS COMPLIANT: YES
Description
General part information
TAD2413A201-020

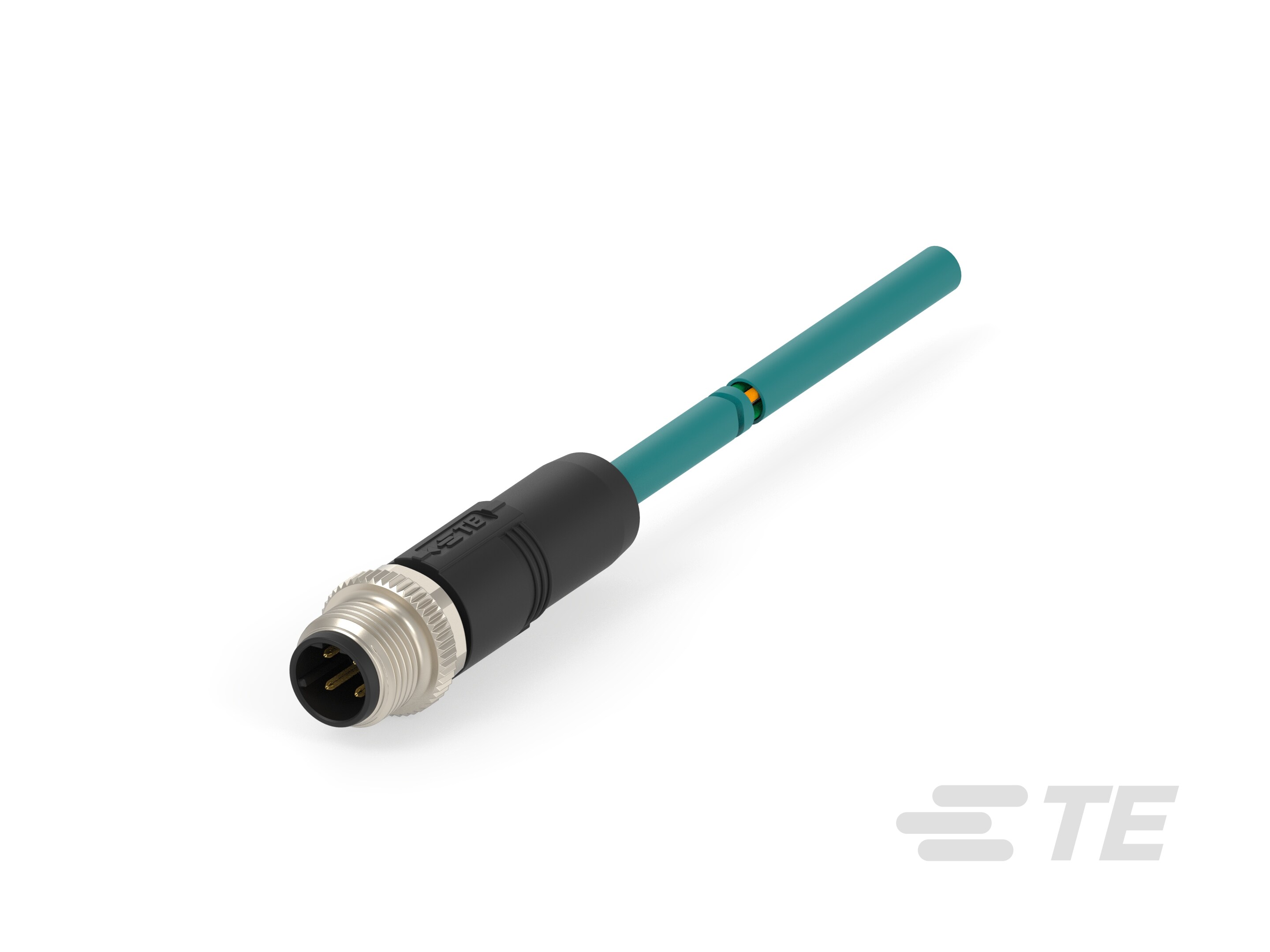

M12 Pigtail Cable Assembly, 4 Position, Cable Assembly Length 2 m [6.5 ft], Industrial Ethernet, Ethernet/IP, D Code, M12 Plug End A, Single Ended
Technical Specifications
Parameters and characteristics for this part
| Specification | TAD2413A201-020 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | D |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Thermoplastic Elastomer (TPE) |
| Cable Type | Round |
| Color | Teal |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 6.56 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments, Cat5e |
