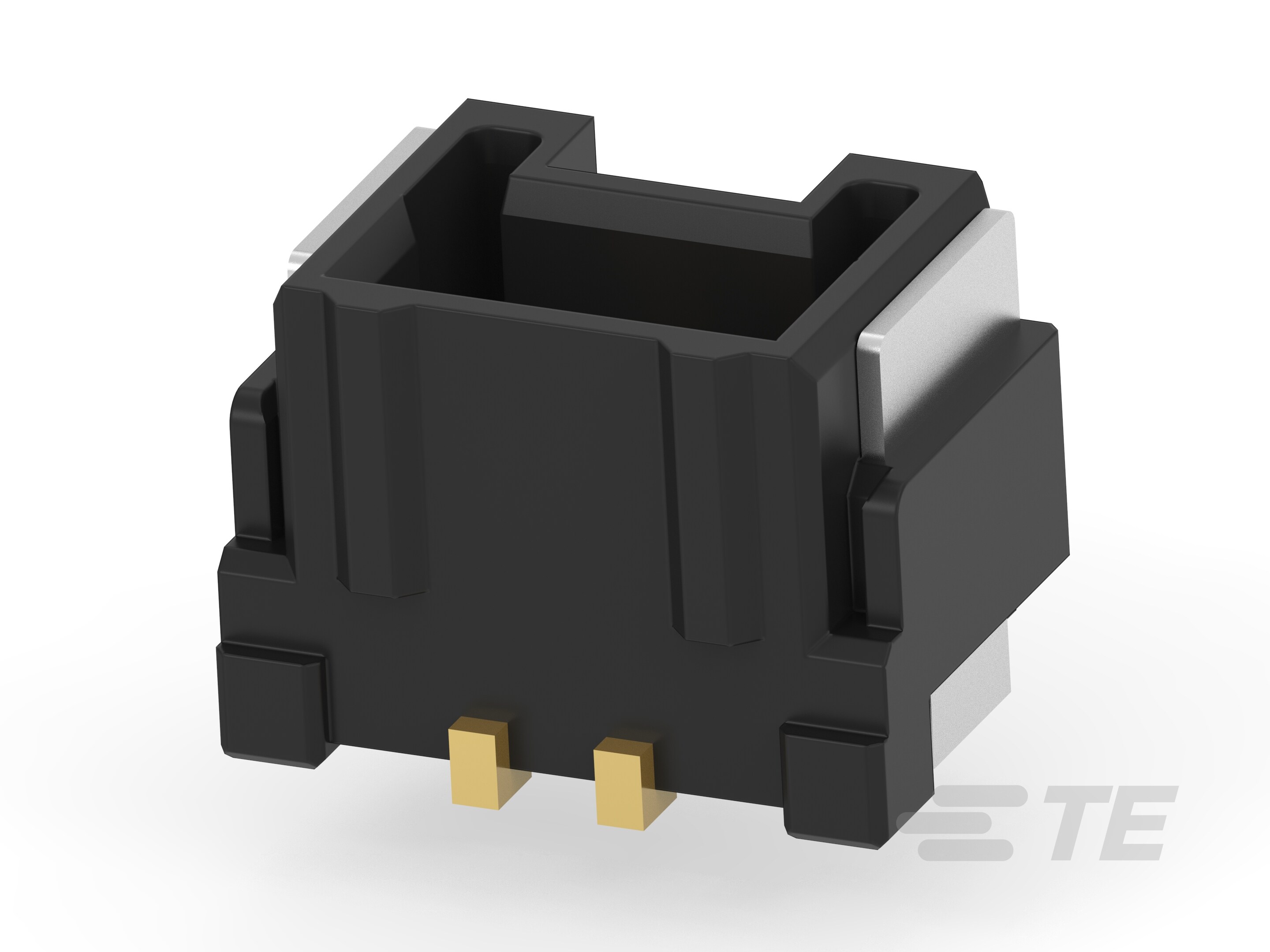

1.25MM HDR SMT, LOCKING HPI, GOLD, 2P-4-2496750-2

4-2496750-2

Active
TE Connectivity AMP Connectors

1.25MM HDR SMT, LOCKING HPI, GOLD, 2P

Find alt
1.25MM HDR SMT, LOCKING HPI, GOLD, 2P-4-2496750-2

4-2496750-2

Active
TE Connectivity AMP Connectors

1.25MM HDR SMT, LOCKING HPI, GOLD, 2P

Find alt

Description

General part information

4-2496750-2

PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 1.25 mm Centerline, Gold (Au), Surface Mount, Power & Signal, Black, Tape & Reel

Technical Specifications

Parameters and characteristics for this part

Specification4-2496750-2
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating1 µin
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeMale Pin
Current Rating3.6 A
Fastening TypeLocking Ramp
FeaturesSolder Retention, Pick and Place
Insulation ColorBlack
Insulation Height0.165 in
Insulation MaterialPlastic
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.049 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating50 V
