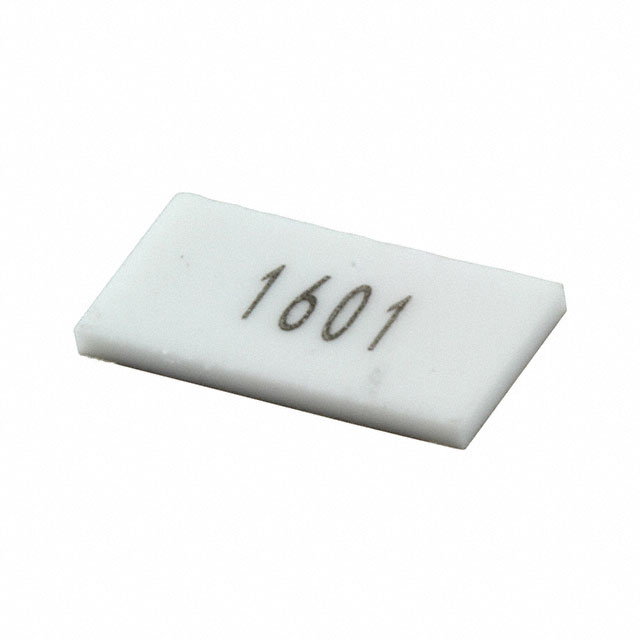

Y1633120R000F9R
ActiveVPG Foil Resistors
RES SMD 120 OHM 1% 0.6W 2512
Y1633120R000F9R
ActiveVPG Foil Resistors
RES SMD 120 OHM 1% 0.6W 2512
Description
General part information
Y1633120R000F9R
120 Ohms ±1% 0.6W Chip Resistor 2512 (6432 Metric) Anti-Sulfur, Moisture Resistant, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y1633120R000F9R |
|---|---|
| Composition | Metal Foil |
| Features | Moisture Resistant, Non-Inductive, Anti-Sulfur |
| Height - Seated (Max) | 0.025 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2512 (6432 Metric) |
| Package Name | 2512 |
| Power (Watts) | 600 mW |
| Resistance | 120 Ohm |
| Size / Dimension Length | 0.25 in |
| Size / Dimension Width | 0.126 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 1 % |
